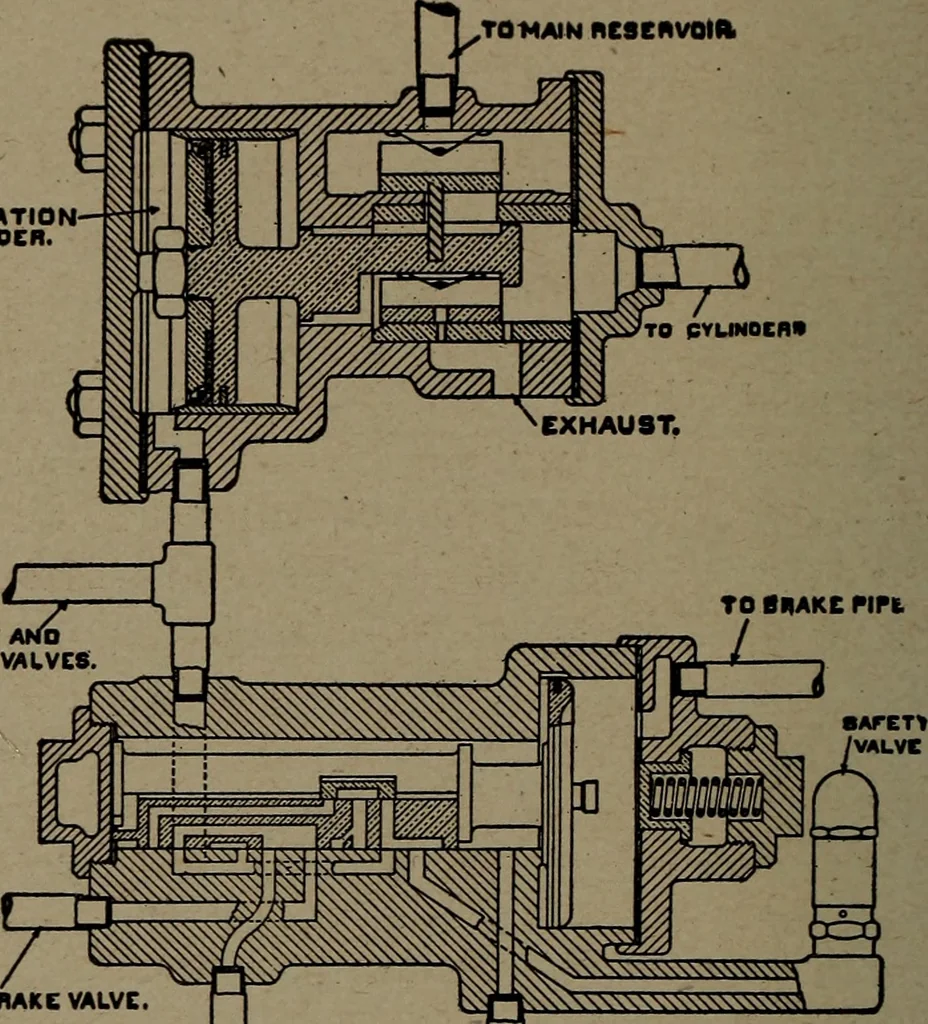

valve 5 topass out to the atmosphere, preventing a pressure buildingup in the chamber below the governor piston, causing it tofail to stop the pump. Therefore, this waste port must bekept open at all times. Broken pipes and defects in con-nection with the S-F-4 governor have been thoroughly… … APPLICATIONCHAMBER PRESSURE CHAMBER. Fig. 32. Diagrammatic View of the Essential Parts of the Dis-tributing Valve and Double-Chamber Eeservoir WESTINGHOUSE AIR BRAKE 253 No. 6 Westinghouse Distributing Valve Figure 32 is a diagrammatic view of the essential partsof the distributing* valve and…
