Steam power plant auxiliaries and accessories; (1922)
Croft, Terrell, 1880- ed, Dufflin, Daniel John, 1911- ed · New York, [etc] McGraw-Hill book company, Inc · leaf 392

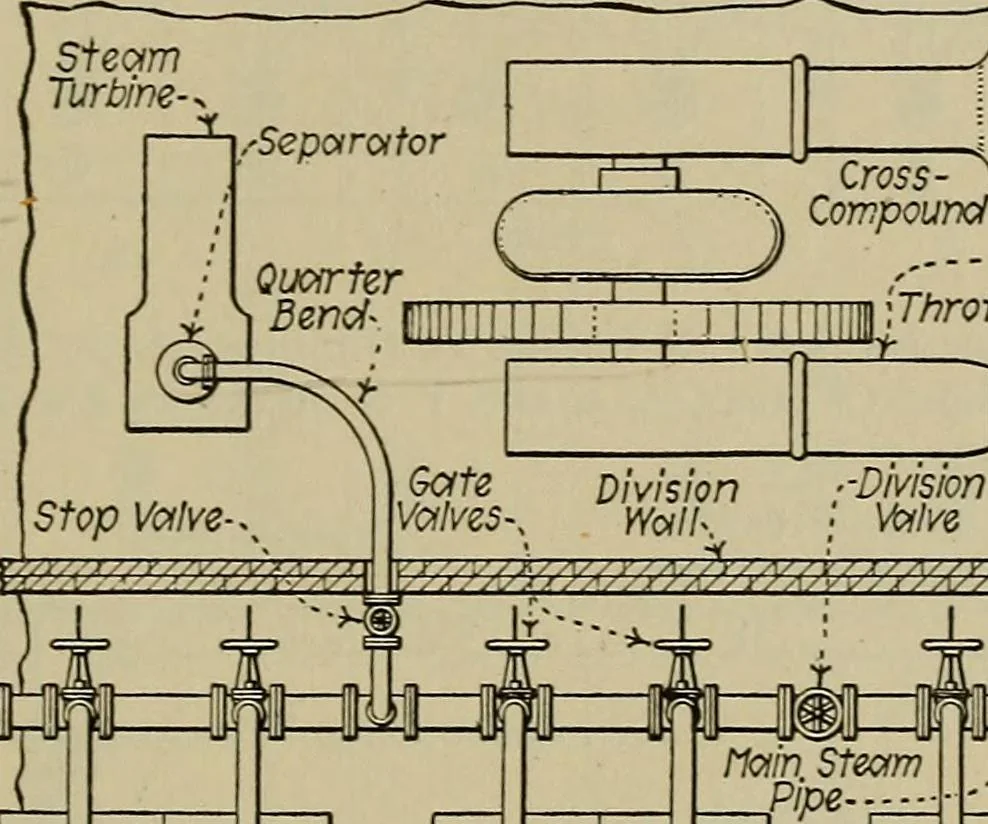

-in. for 2.5-in. pipe to 11-in. for 9-in. pipe and to18-in. for 16-in. pipe. When the flanges are flared or lapped (III, Fig. 350) the tangent-lengths range from 6-in. for 2.5-in. pipe to 9-in. for 9-in. pipe and to18-in. for 16-in. pipe. When the flanges are welded, the range of tangent-length is… … ( ^i Compound Engine-^ Quarter ^ , i + ,-~. Separator-igrcMSllllHIM ; i iMillliilll^fffe-^ y y <t HT^P3^ Quarter * Bends-. JZM SHighSpeed Engine \ Stop Jtseparator-Valves^ ti f- I £ I i I U-Bends I.i I # # 0 H -Stop andCheck- Valves Fig. 353.—Single Header System Of Steam Piping. one boiler…
Steam power plants · Pumping machinery
