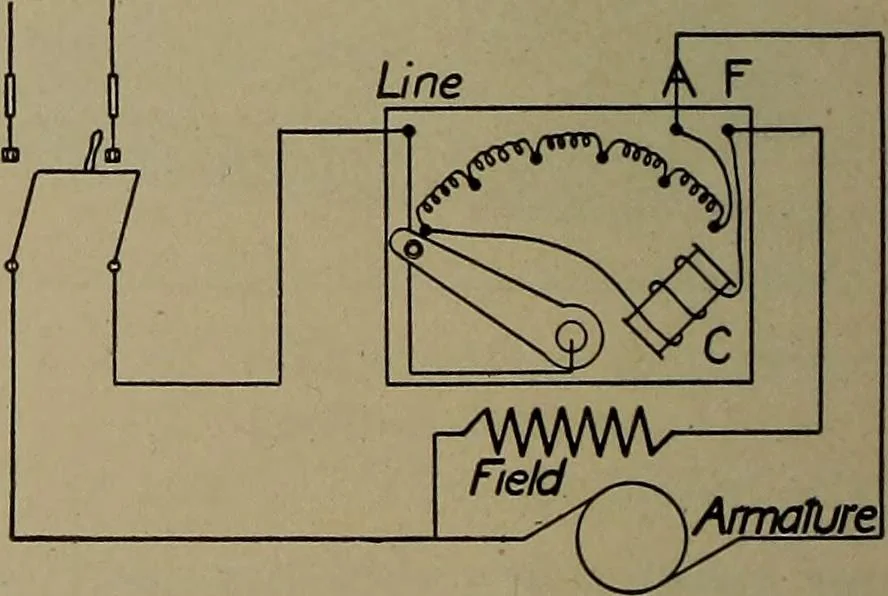

Figure 200. — Wiring Diagramof a Series Motor withStarting-box in the Circuit. … Figure 201. — Wiring Diagram ofa Shunt Motor with Starting-box Connections. SHUNT MOTOR 195 Figure 200 shows the connection for a series motor withstarting-box in the circuit. The term series is used because the armature and fieldare connected in series. The starting-box is put in the line,in…
