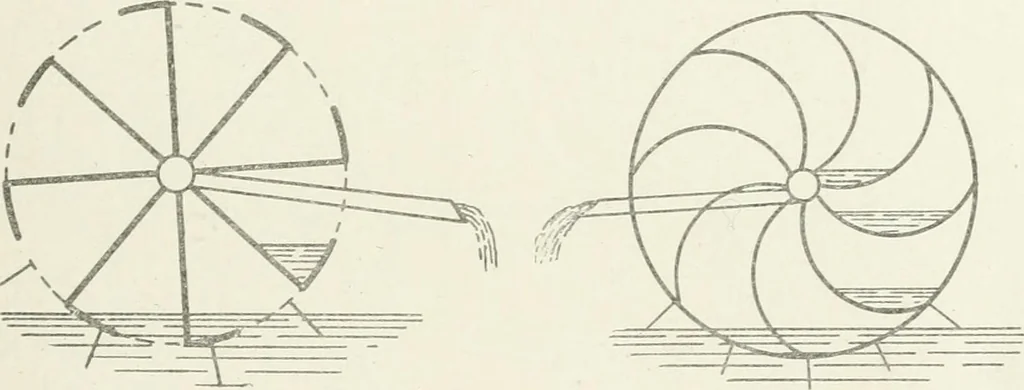

f the wheel, and downward on thedescending side. The wheel is mounted in such a way that its lov/estparts are submerged to a convenient depth, and it may be turned bythe impulse of the current impinging on radial vanes arranged aroundits circumference. The partitions scoop up a c|uantity of… … Fig. 36. Tympauimii. Fig. 37. Scoop Wheel. raised at the extremity of eaxh radius, so that its lever arm, andtherefore its resistance, increases as it is raised to a horizontal plane.This defect does not exist in the next type. 71. Scoop Wheel. As this wheel (Fig. 37) revolves, the partitionsdip…
