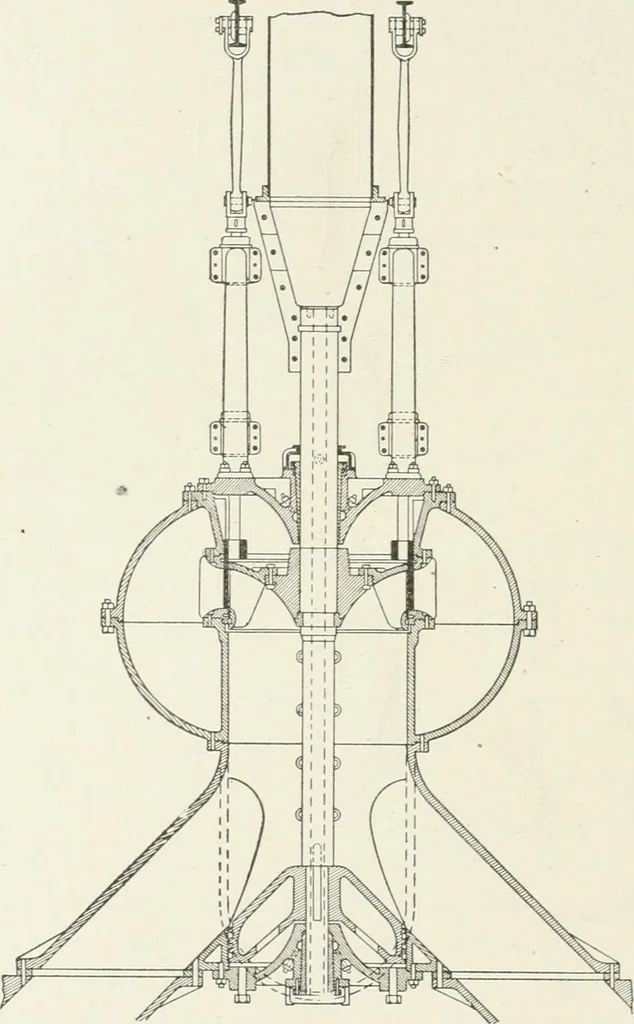

befrom each turbine inPower-House No. 2bifurcates, the twobranches passingdown in recesses inthe walls, discharg-ing into the tail-raceattheoppositesides.The pair of draft-tubes for each tur-bine starts from aY-piece; and they are of heavy ribbed cast-iron anchored to the rock,and serve as supports… … Fig. 179. One of the 5.500-Horse-Power Turbines, with Balan-cing Piston Showing Double Draft-Tubes, Power-HouseNo. 2, Niagara Falls Power Company. WATER-POWER DEVELOPINIENT 223 r-.i^23i For Elactnc Wires the giiide-blade.s, which allows for collecting stones that may be car-ried down the penstock,…
