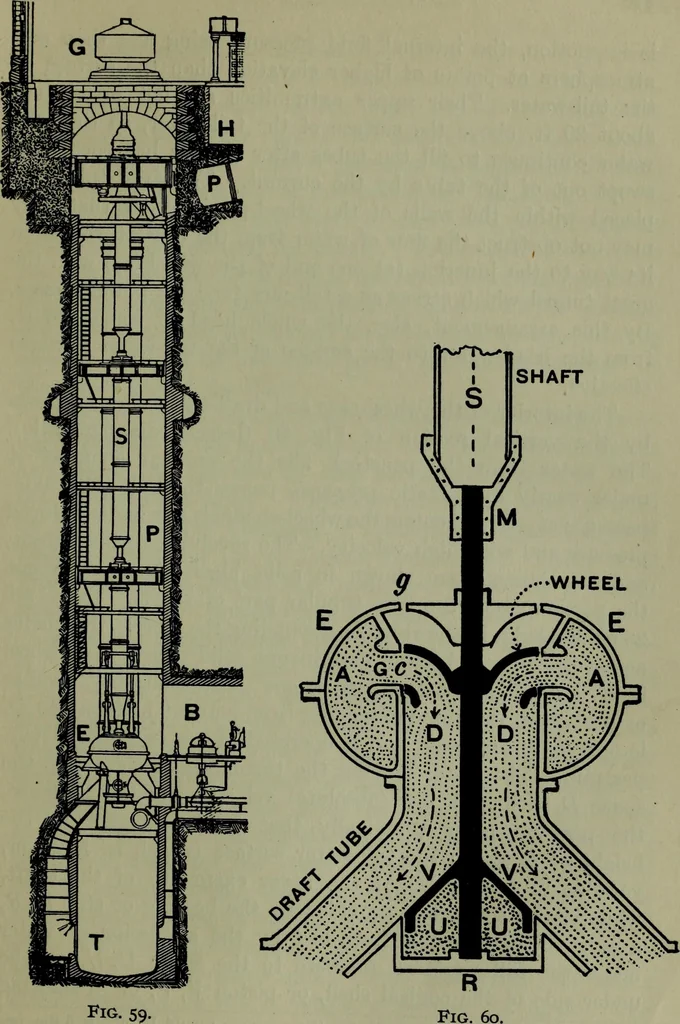

conducts the water to the turbine inthe wheel-casing, E. After leaving the wheel, the water entersthe upper ends of two draft-tubes (or suction-tubes, asthey are often called), from which it is finally discharged intothe tail-water at T. These draft-tubes discharge underwater that the air may not… … Fig. 59. 117 118 HYDRAULIC MOTORS. § 78. is in motion, the internal fluid pressure being less than oneatmosphere at points of higher elevation than the surface ofthe tail-water. Their upper extremities are not more thanabout 20 ft. above the surface of the tail-water, so that thewater continues to…
