Hydraulic motors, with related subjects, including centrifugal pumps, pipes, and open channels, designed as a text-book for engineering schools (1905)
Church, Irving Porter, 1851-1931 · New York : J. Wiley & Sons; [etc, ] · leaf 20

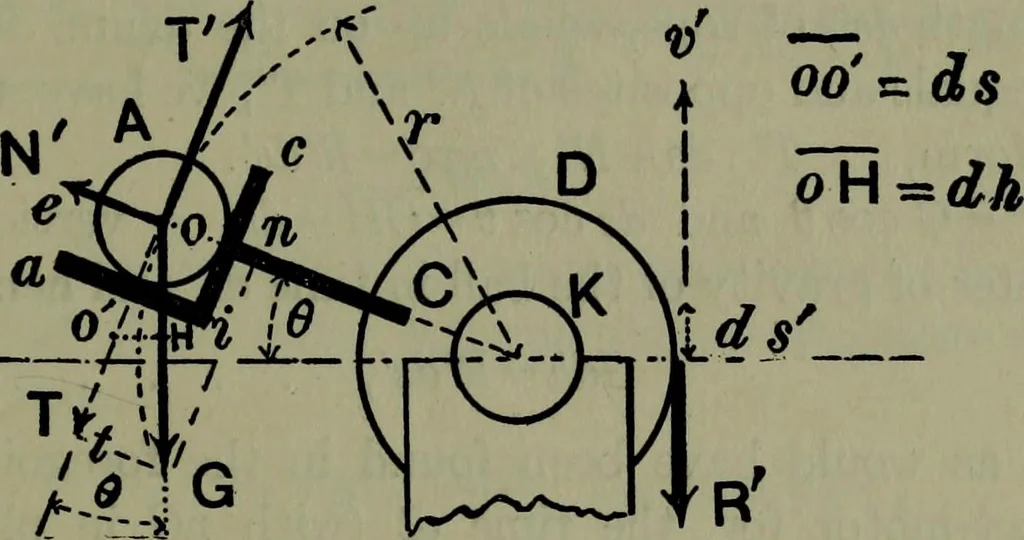

for simplicity, but will be considered later. 5. Buckets Moving in a Circular Path.—If the buckets arefirmly attached to the rim of a single rigid wheel (revolving ina vertical plane) and thus constitute a vertical water-wheel,the resultant pressure on a bucket of the water in it is not equalto the… … Fig. 2. To prove this, in simple fashion, consider (Fig. 2) a heavyball of weight G lbs., resting against a plate ai parallel to theradial arm nC, and upon another plate, ic, perpendicular tothe same; both plates perpendicular to the vertical plane ofthe paper. The arm oC and plates are rigidly…
Hydraulic machinery
