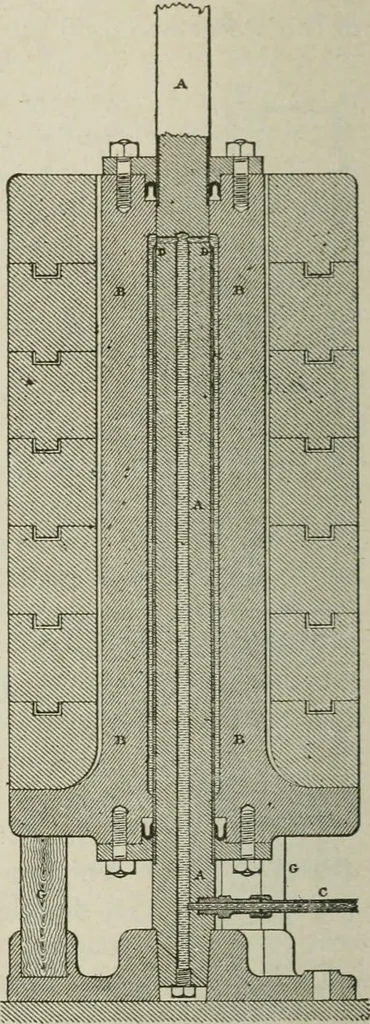

g demandfor water where only one applianceof this kind is used in connectionwith a hydraulic system of shoptools more especially where thesetools are numerous. The ram or spindle A is fixedtop and bottom and acts as a guidefor the cylinder B which slides upand down upon it. This cylinder is loaded… … Fig. 149. Hydraulic Accumulators. 173 around the spindle. The entire weight of cylinder is raised b\-the pressure of water acting only on the area of the end ofbrass sleeve D, D, which is only \ inch thick all around thecenter spindle, and extends down through the bottom packingin cylinder, as…
