Illustrated catalogue and general description of improved machine tools for working metal (1899)
Sellers, William, & co. [from old catalog] · Philadephia, Levytype company · leaf 147

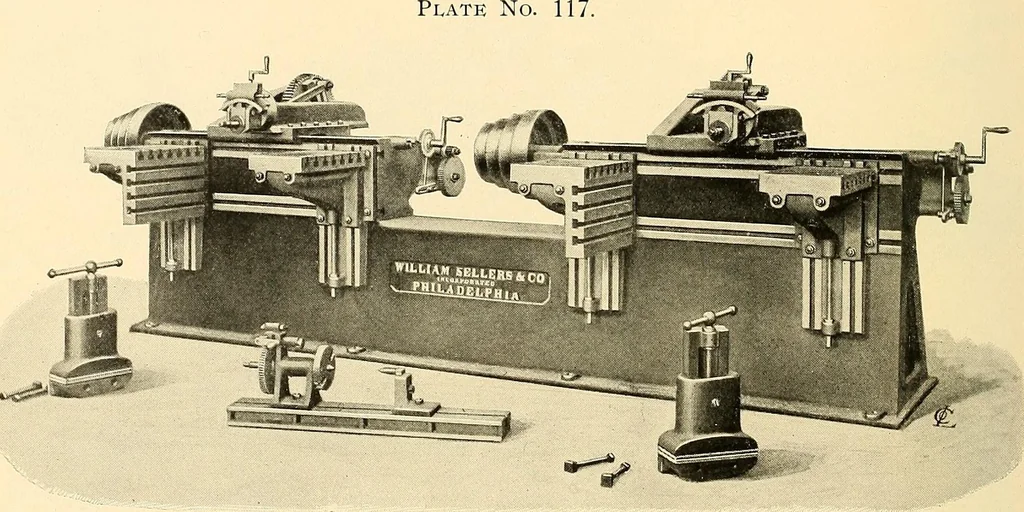

6^2. Overhang oftables, 23. Vertical feed of tool, 6^2. Motions for straight, curved, vertical,and angular work. Revolving holloiv spindle in bed to car/y nnr/idrels and rones forcircular work, clamping vise, and centre-heads ivith index plate, furnished to order.Countershaft with two sets of fast… … DOUBLE SHAPING MACHINE. Two 12 shaping machines on one base, 13 ft. long. Stroke of eachmachine adjustable from o to 12, with Whit worth quick return motion. Shap-ing bar adjustable 18 in addition to stroke. Movement of each saddle, 48.Tables adjustable vertically and horizontally. Extreme distance…
Machine-tools · Machinery
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
