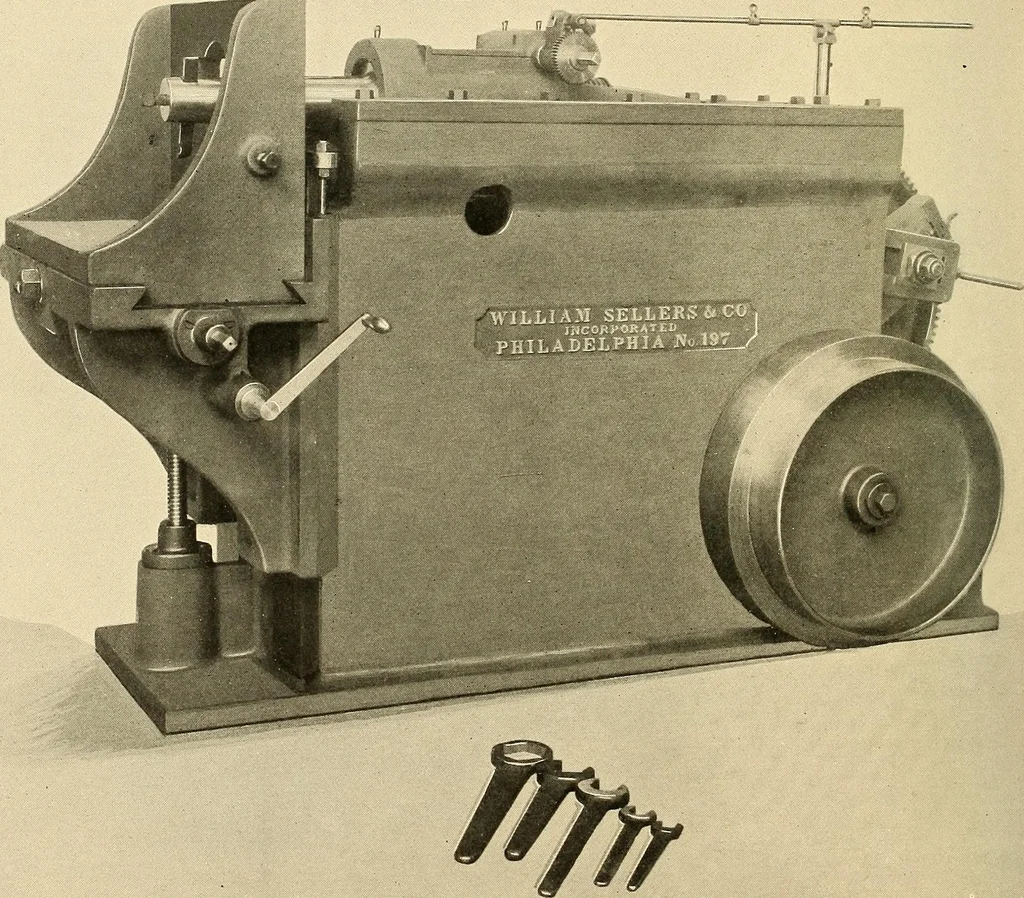

ke adjust-able to 48 maximum. Bar operated by spiral pinion and rack like our planers.Has quick return at four times the cutting speed. Circular table 5 ft. diameter, has4 ft. traverse on bed. Height from table to underside of bar 46. Vertical strokeof tool slide 6. Table has quick power traverse,… … 14 DRIVING BOX SHAPER—with Circular Feed. A very massive and substantial machine especially designed for planing outthe semicircular bearing in locomotive driving boxes to take brass bushing. Widthbetween ribs on knee for holding work, 26. Vertical adjustment of bracket, 8.Knee for holding work has…
