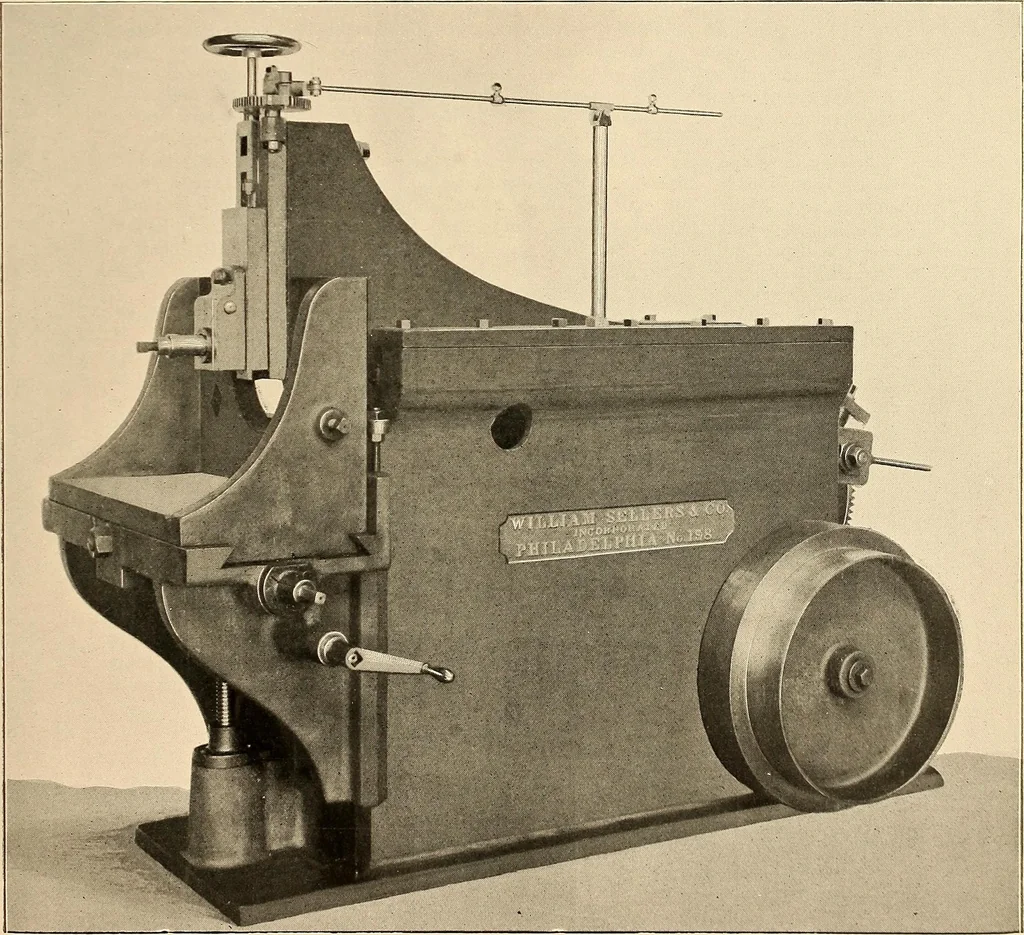

and substantial machine especially designed for planing outthe semicircular bearing in locomotive driving boxes to take brass bushing. Widthbetween ribs on knee for holding work, 26. Vertical adjustment of bracket, 8.Knee for holding work has cross travel on bracket. Stroke adjustable up to… … 14 DRIVING BOX SHAPKR—with Vertical Feed. To be used with machine in Plate No. 121, for planing the straight sides oflocomotive driving boxes. Tool box has automatic vertical feed with stroke of 8 ^ _-.Knee for work on bracket to carry work is 26 wide between side ribs and hascross travel on…
