Illustrated catalogue and general description of improved machine tools for working metal (1899)
Sellers, William, & co. [from old catalog] · Philadephia, Levytype company · leaf 66

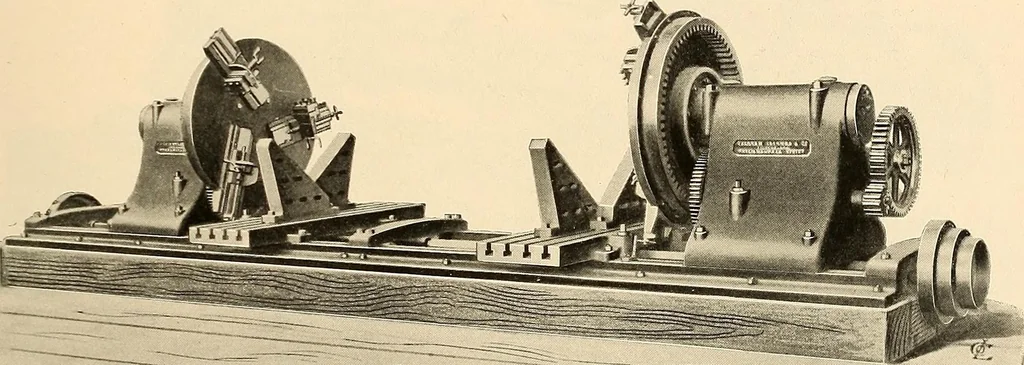

driving wheels or by substituting other driving heads. Tablehas quick hand adjustment and geared power feed, giving three changes. Cone,16 diameter, 3)^ face. Detachable boring bars, 3^ diameter. Usual heightof bar above table, 7. Complete with countershaft, two bars with cutter heads,outboard… … 62 FLANGE FACING MACHINE- For facing simultaneously the flanges of large cast-iron pipes. Two adjust-able tables with V blocks are provided, in which the pipe can be held, and towhich it may be bolted, and the heads are also adjustable to suit the length of pipeto be faced. Heads and tables mounted…
