Illustrated and descriptive catalog of Whitin cotton combing machinery : and handbook of useful information for overseers and operatives (1922)

Whitin Machine Works (Whitinsville, Mass.) · Whitinsville, Mass. : Whitin · leaf 34

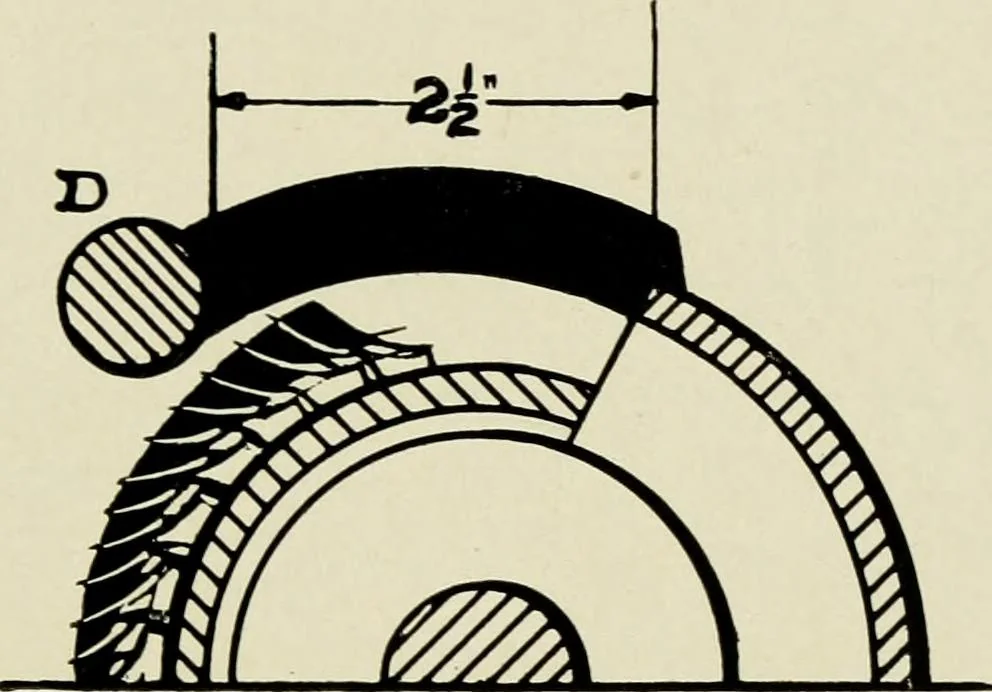

An illustration from Illustrated and descriptive catalog of Whitin cotton combing machinery : and handbook of useful information for overseers and operatives, 1922, leaf 34 — Page 30 Detailed Instructions for Setting Model E, Combing Machine Nasmith Type The Index Plate is divided into 40 parts, every fifthmark being numbered 5, 10, etc., up to 40. … Fig, 1. THE CYLINDERS. SETTING No. 1. At index 2^, set the cylinders in the middle of eachhead and screw them tightly on the shaft so that the frontedge of the plain segment is to finger gauge (2J) fromthe back of the steel detaching roller (Fig. 1). Note 1.—The bearings of the roller D, if…

Textile machinery · Cotton machinery

Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
