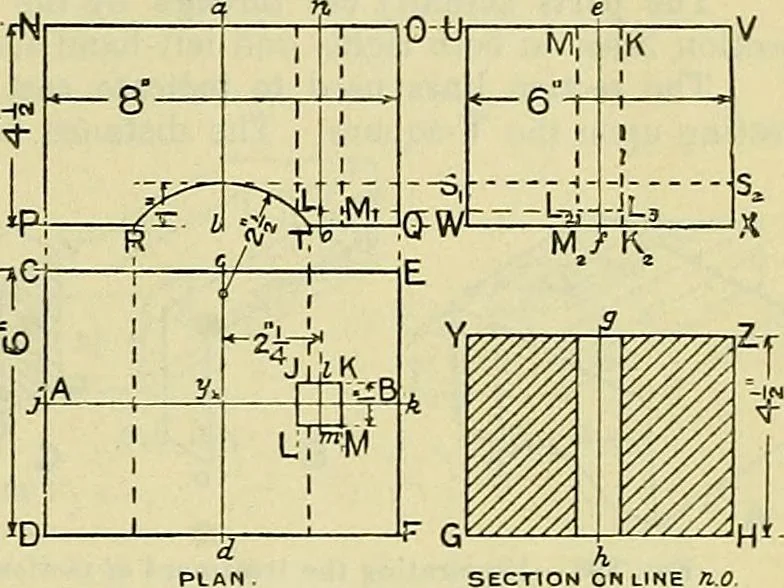

PLAN AND ELEVATION—HOW TO MAKE A WORKING DRAWING OF A SOLID BODY 99 ELEVATION. END ELEVATION. … SECTION ONLINE tl.O. As a drawing example, the four views of the block shown in Fig. 297, viz. a front elevation, a plan, an end elevation, anda section on the line no (see also Fig. 296) taken transversely through the centre of the hole and looking to the right (the left-hand portion being…
