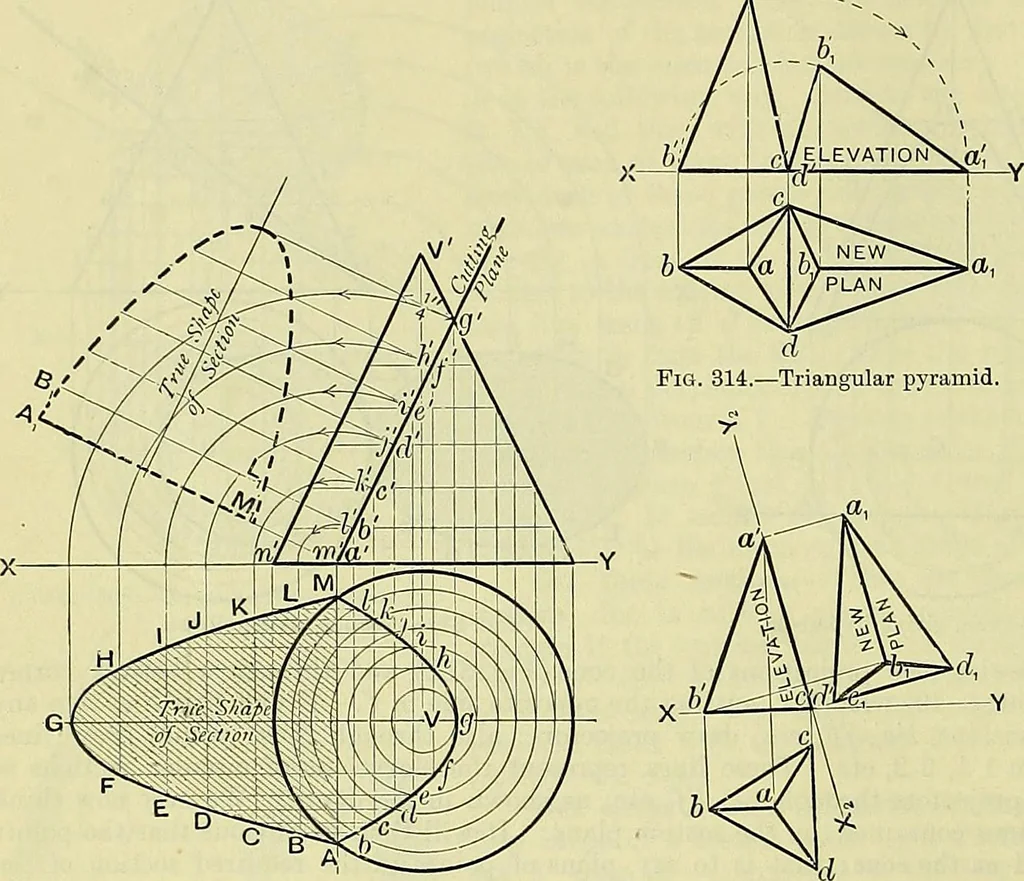

plan. Nothing more need be said about the construction of this figure, as a glance at it will explain the wholeoperation. So you may now compare it with the alternative method shown in Fig. 315. Here you will see that, instead of con-structing (swinging) the face into the horizontal plane (XY), we… … Fig. 313.—Section giving parabola. PROJECTIONS AND SECTIONS OF SOME TYPICAL SOLIDS 107 to om new ground-line X2Y.2; and by marking off fli the same distance from X2Y2 as a is from XY, and doing the same with theother points—in fact, by making the new plan of each point the same distance from the…
