Industrial drawing and geometry; an introduction to various branches of technical drawing (1911)
Spooner, Henry John, 1856- · London, New York [etc.] Longmans, Green, and co. · leaf 89

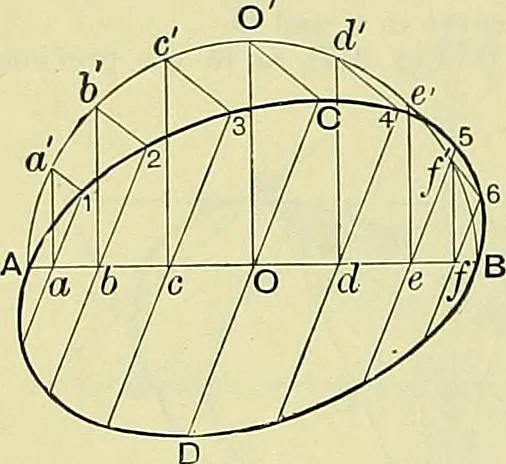

d: By Radial Lines from the Ends of One of the Axes.—Let AB and CD (Fig. 218) be the given con-jugate axes. Then through the ends of AB and CD draw the parallelogram EFHG, with sides parallel to the given axes. Then thepoints a, b, c, d, e in the quadrant AD of the figure may be found in the same… … \ c /tl\\ \/ \ \ o / y\ \ W /m K \
Mechanical drawing · Geometrical drawing
