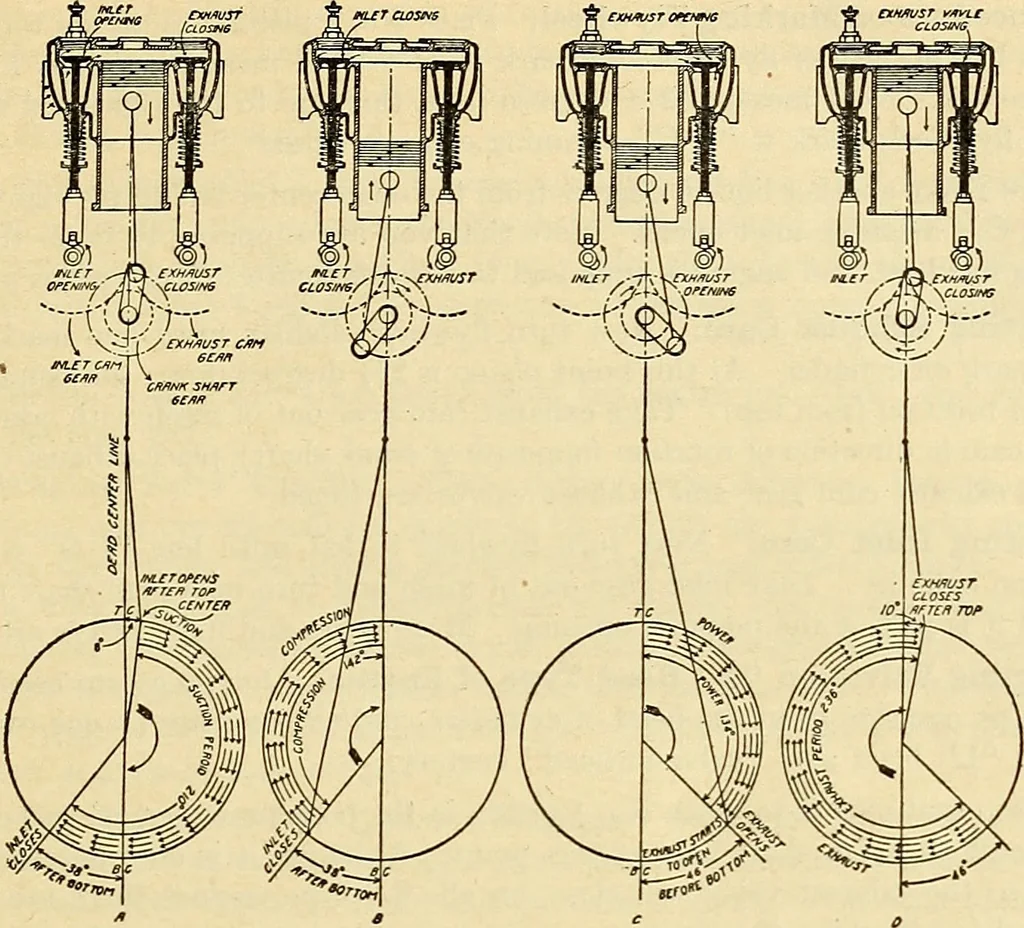

th exhaust to close on dead center and inlet to open when thepiston is yi after top dead center on suction stroke. 84. Setting Exhaust Valve. Place piston (by turning crank shaft) on top dead center,then mesh exhaust cam gear with crank gear, so that exhaust valve is just seating. 85. Setting Inlet… … Fig. 3 Therefore the closing of the exhaust and opening of the inlet is the point to work from a singlecylinder engine. 86. Setting Valves on a Multiple Cylinder Engine. Setting the valves or timinga multiple cylinder engine is identically the same operation as timing a single cylinder engine. 87.…
