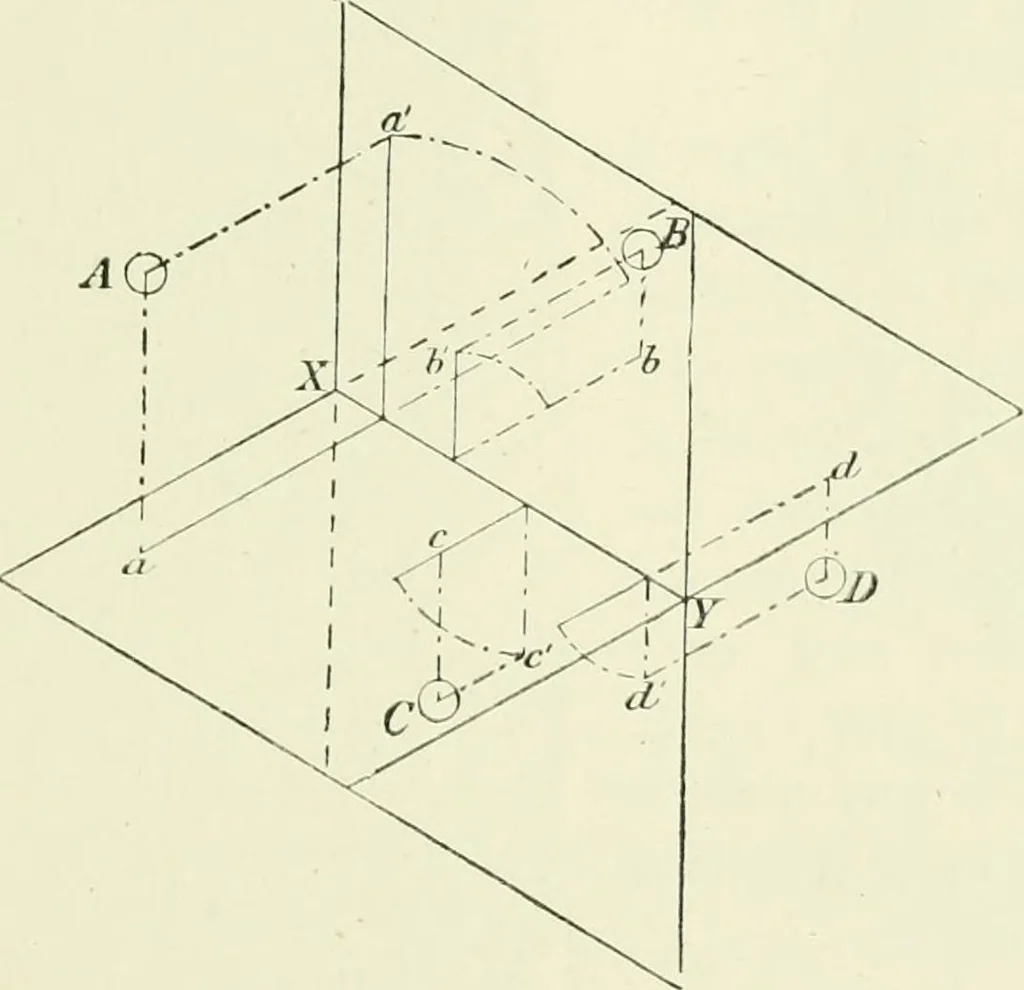

nion that Sloyd, iu ite Swedish form, is un-guitcd to England. . . . The most important section of the hook is that on bcnchwork. SPECIMEN PAGE DRA WING 25 unfold it. The two planes with their trace will then begiven. The arcs show the direction of the folding of the verticalplane into the… … Fig. 6. plane; No. 2 is behind the vertical plane, and over the hori-zontal plane. No. 3 is below the horizontal plane, and behind the verticalplane, and No. 4 is in front of the vertical plane, but under thehorizontal plane. Suppose a point a exists 1 in. above the horizontal plane, and1 in. in…
