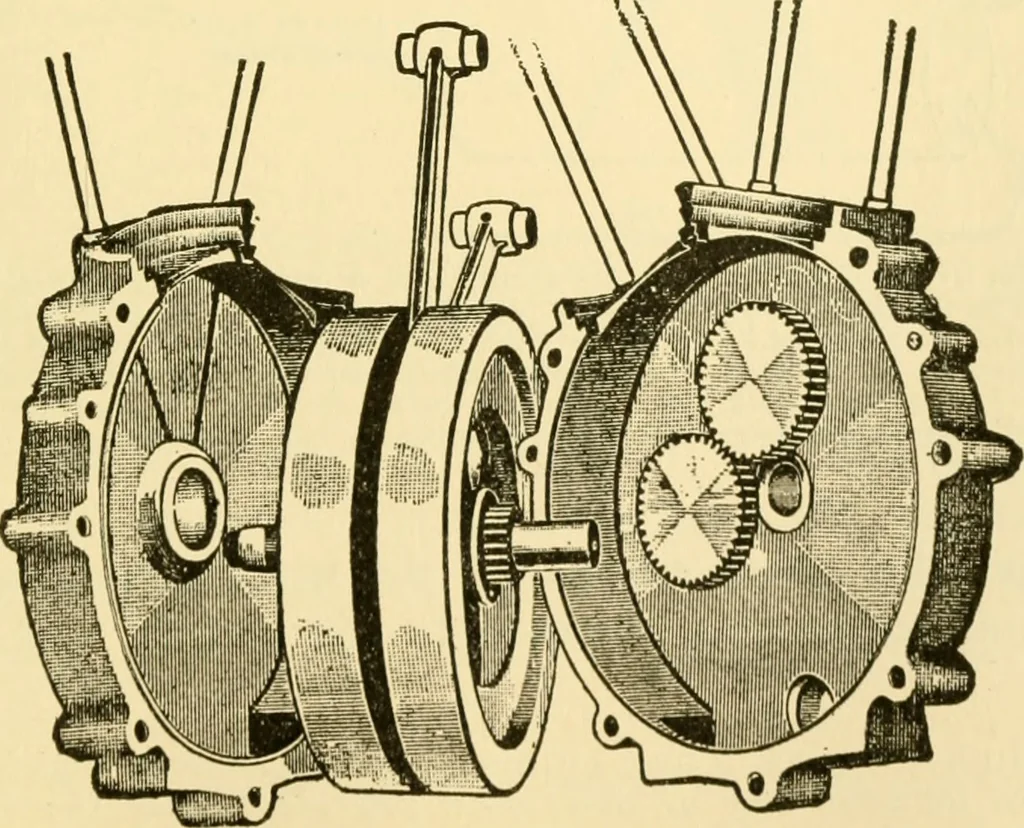

ned. It will be seen that the revolvingcam acts on the end of a cam lever, while the cam upon the lever lifts a secondlever, or finger, upon which the lower end of the inlet valve operating rod rests.The exhaust valve is operated in the same way, but the levers are of slightlydifferent form, and… … Fig. 274.—Interior view of a twin cylinder crank case with flywheels, con-necting rods, and the two to one gears which operate the valve mechanismand the ignition apparatus, whether that be of the battery type or magneto.In this illustration an oil reservoir is shown and in the right hand half of…
