Instructions for using the new improved Raymond family sewing machines and attachments (1902)
Raymond Manufacturing Company of Guelph · Guelph, Ont. : Raymond Manufacturing Company of Guelph · leaf 10

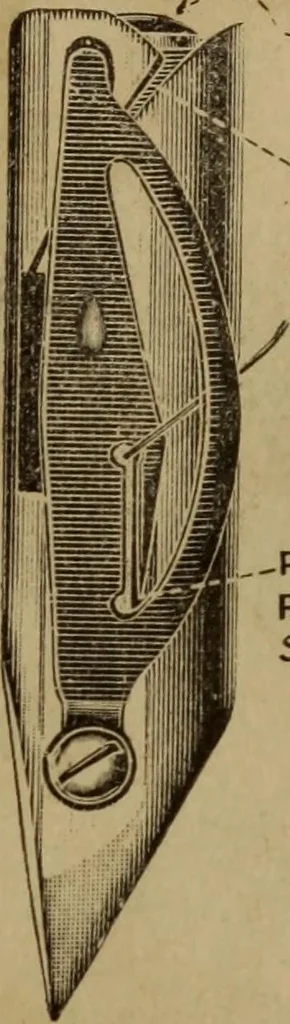

THE NEW IMPROVED RAYMOND Co thread the Shuttle. Take the shuttle between the thumband finders of the left hand with itspoint towards 3:011. Drop the bobbininto the shuttle and press it gently onthe end with the forefinger of the lefthand to present bobbin from turning,then take end of thread in… … -end of bobbinShuttle slot -PROJECTINGPOINT OFSHUTTLE SPRING Co Put the Shuttle inmachine. Pull the slide that covers the shuttle race out to end of open-ing, have the shuttle carrier at the end of race towards you, thenput the shuttle into the carrier with the point towards you andtension spring…
