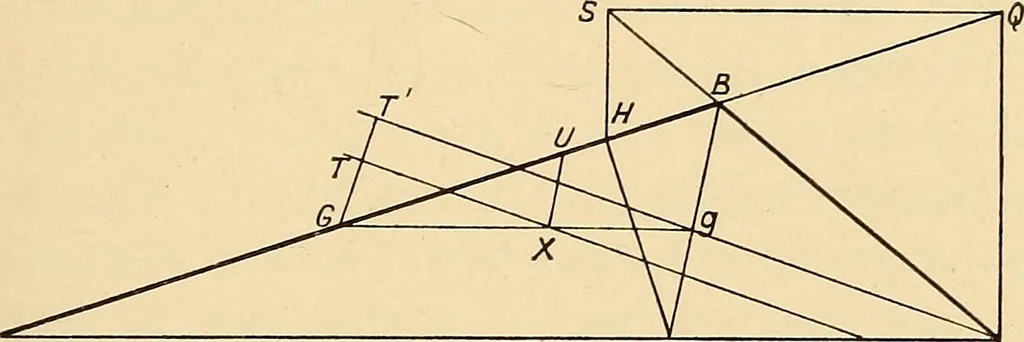

celerationat the end of the stroke is more or less than the S.H.M. T value by the fraction — of that value. 81. Connecting Rod Effect.—This is best illustratedby a geometrical construction due to Mr. J, Harrison,MXC.E, THE GAS ENGINE 169 The construction is as follows :— OB is the crank and AB the… … A a N 0 Fig. 53.—Resultant of all the Accelerating Forces on a Connecting Rod. Then TXN parallel to gO is the line of action of theresultant of all the forces acting on the rod and its valuein mq2.XN where m=mass of rod and #=angular velocityof crank-pin. The proof of this construction is given…
