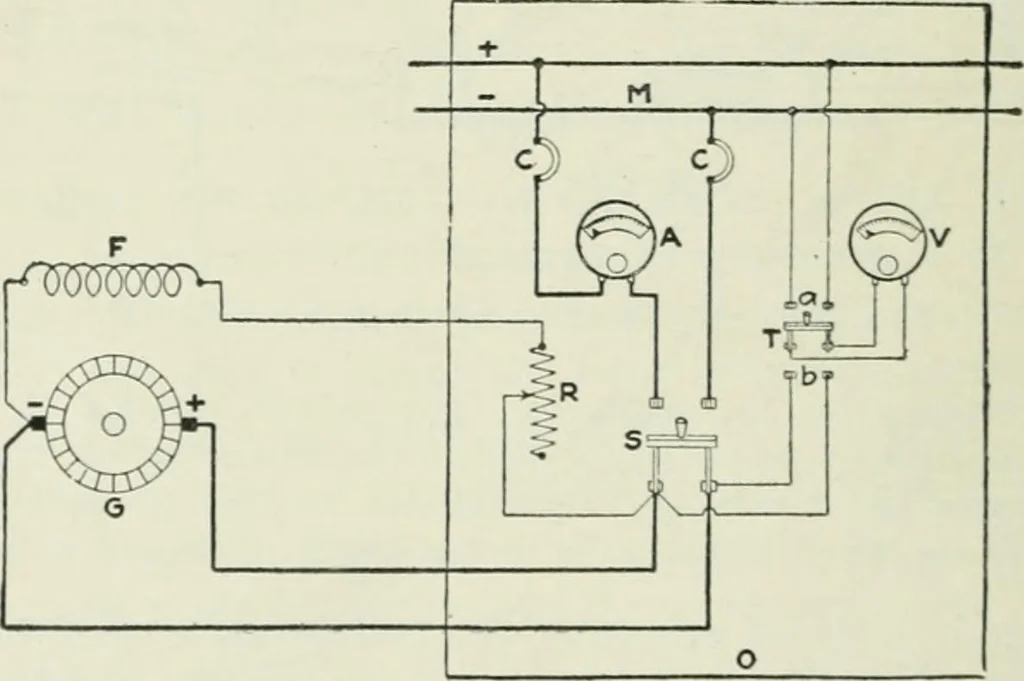

is, of course, openwhen the machine is not in service, the field rheostat R foradjusting the current through the field coils F, a voltmeter V,connected to a switch T for obtaining the voltage at the bus-bars .1/ and the generator respectively, an ammeter A formeasuring the current output of the… … Fig. 331.^-Connectious for parallolinjtr a shunt generator with one or more machines. The first thing to do is to start the unit and bring it up tonormal speed, after which switch T is thrown to position /)and the field current is adjusted by means of the rheostat //until the vollmeter V indicates…
