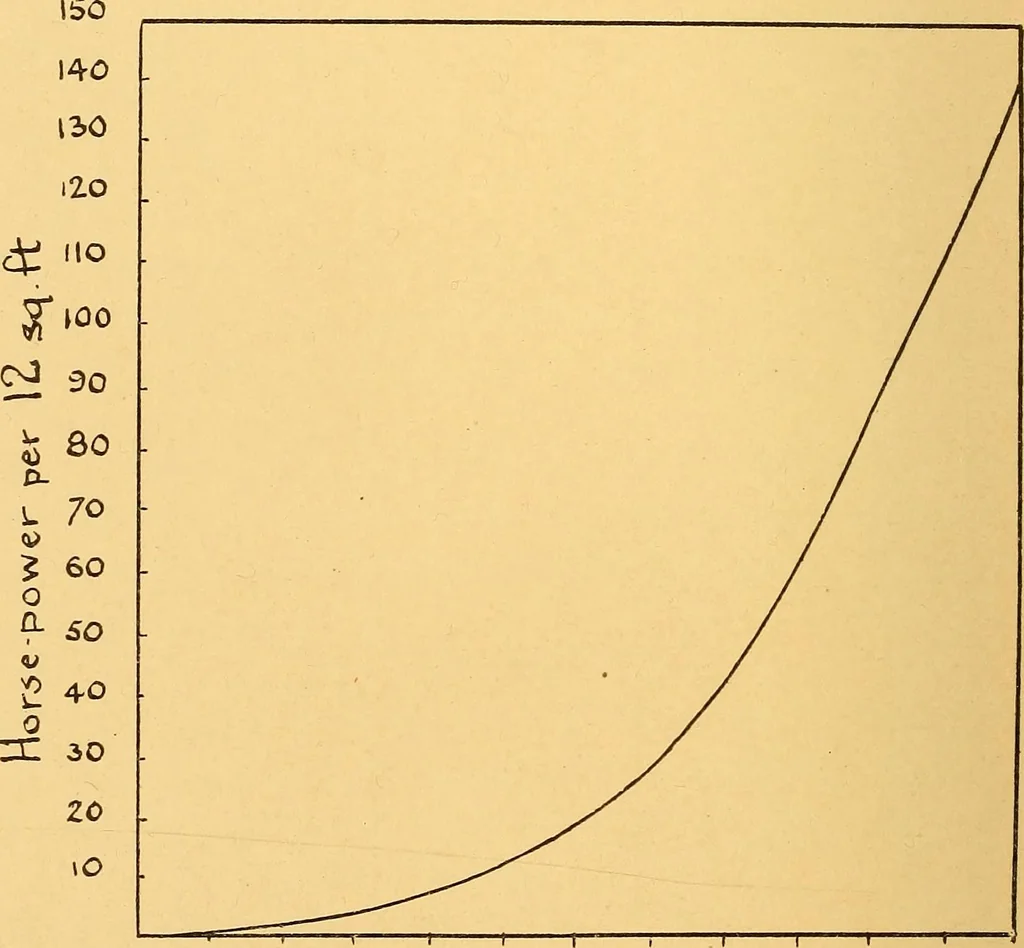

, / and s. As regards s it may be pvotty safely 316 THE INTERNAL COMBUSTION ENGINE assumed as about 12 square feet to start with. The authorhas not himself solved this exercise, nor, so far as he knows,has any one else. It is therefore possible for an enter-prising student to do this and really… … o to 20 30 40 50 60 7o SO 90 100 110 120Miles per hour Fig. 114.—Showing relation between speed and H.P. necessary to over-come wind resistance per 12 sq. ft. of area. road resistance is known to be not usually more than 50 lb.per ton, although cases of 100 lb. per ton are known. Alsothere are…
