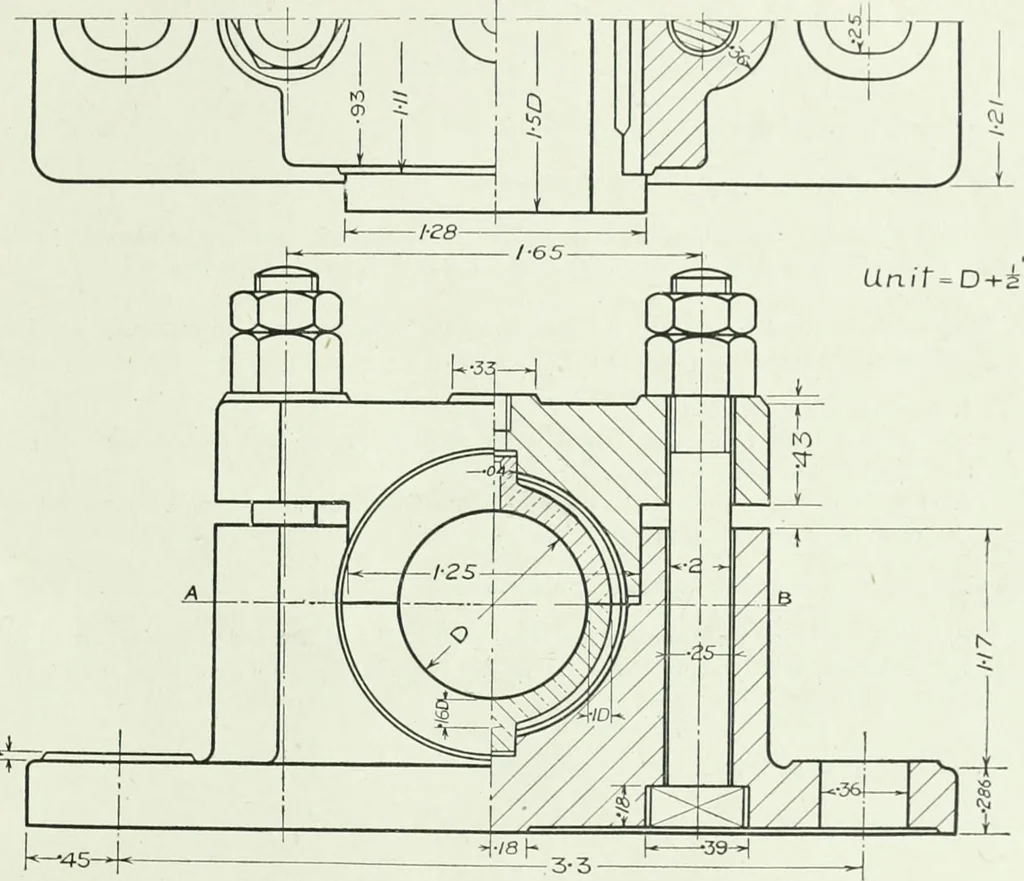

ke this, where an asseml)ly drawing and also a detail drawing (see also pages76 and 77) are to be made, the assembly drawing is not to be dimensioned as the preceding oneswere. Assembly drawings are intended to show merely the positions of the different parts andhow they are to be put together.… … 74 MACHINE SKETCHING AND DRAWING Pedestal ok Pillow Block Scale—Half size Make a set of working drawings of the pillow block (page 73) — (1) plan and side elevationsof the block and the cap, (2) two views of one of the brasses, and (3) one view of a bolt. An arrangement of these views is indicated…
