The investigation of a gasoline automobile lighting and starting set (1914)
Shepperd, James Douglass · leaf 56

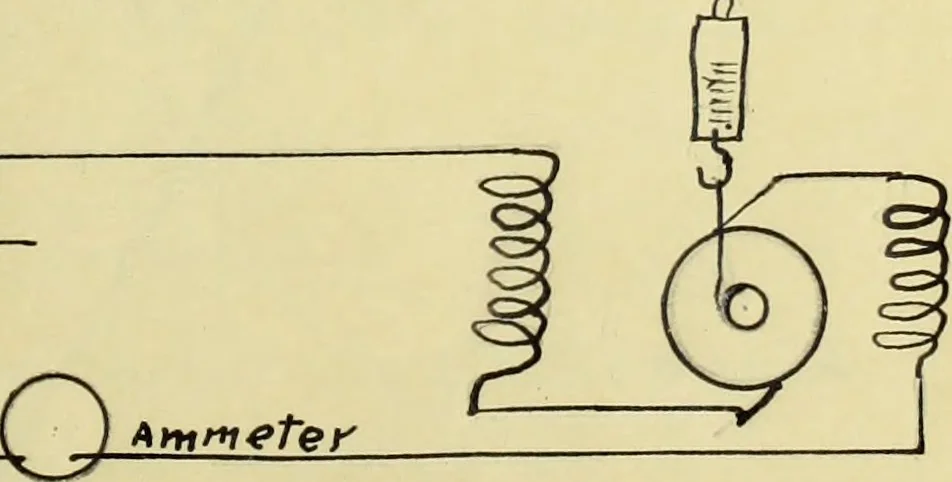

rty times that exerted at the motorshaft.The data taken was the current values and the pull in pounpounds for each value of current.A curve was plotted for thesevalues, (curve Nol2,page 24).,From the form it was seen that thetorque varied as the square of the current according to theusual… … Current Torque Curve for Starting Motor Current, amperes Pull,lbs. Torque inch lbs 44 7-3.5 56 11 5,5 72 17 8.5 90 28 14.0 JL2S na Rfi-n i
