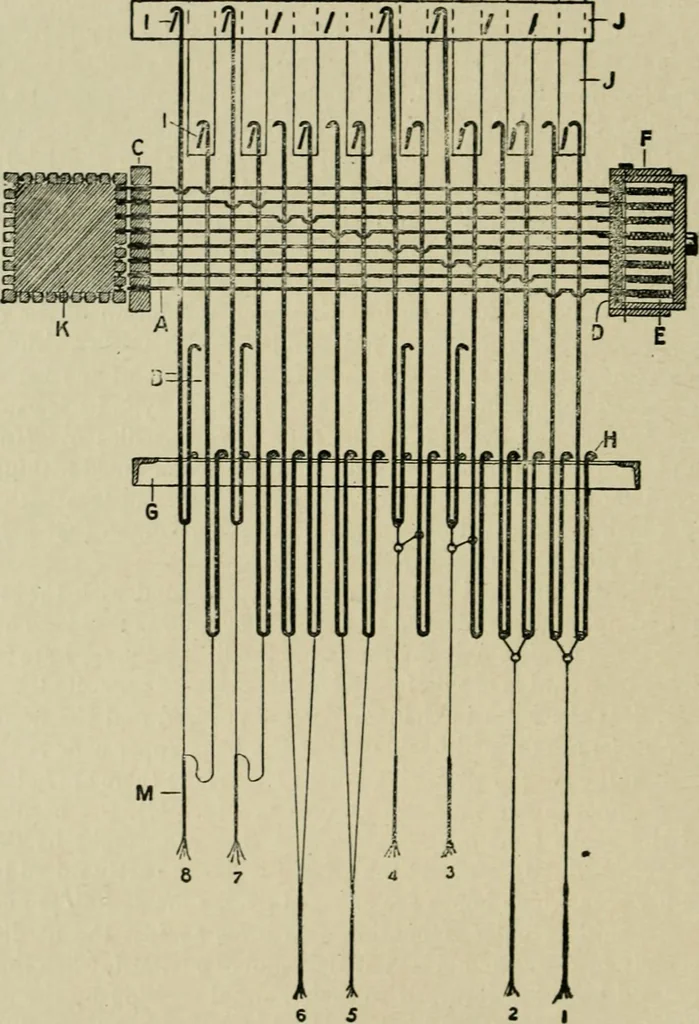

IGN AND COLOUR absence of counterpoise in the machine, the single-lift jacquard is not suitable forhigh speeds. It is, however, particularly serviceable in weaving certain classesof gauze fabrics, and is also employed to some extent in the manufacture of complexcloths in which for other reasons… … Fig. 245. the single-Hft machine, but there are both a rising and a falling griffe. The warpthreads, when at rest, are in the centre of the shed ; where there are holes in thecards the corresponding hooks are raised to the top through the action of the risinggiiffe, while the remaining hooks are…
