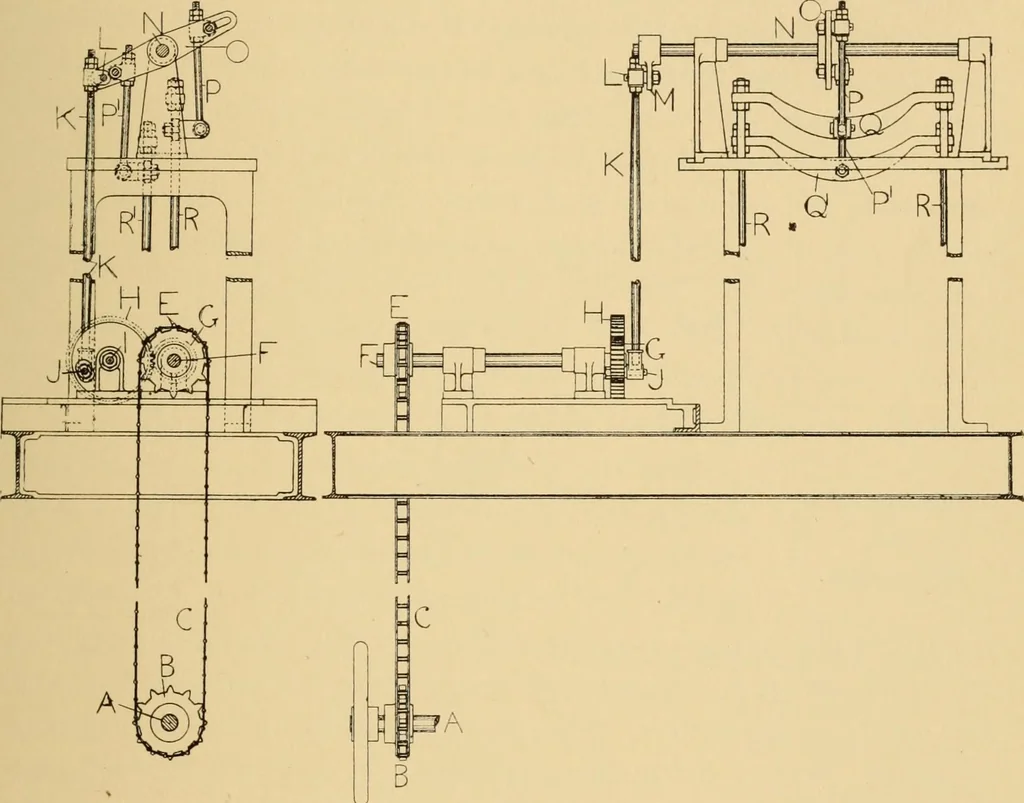

hewarp threads constituting the shed. Simultaneously, but con-versely, the cam d1 also rotating counter clockwise gradually releases DOUBLE LIFT JACQUARD MACHINES. IOC> its pressure upon roller j1 and approaches roller k1 until when inrolling contact it assists in checking the falling shed,… … Fig. 105. Fig. 106. Chain DrivingMotion. This system is designed to produce a steadydrive in the reciprocating parts of the head and toeconomise room by obviating the use of the ordin-ary long head levers. Figs. 105 and 106 are sketches made from Hardakers machine.The former shows an end elevation…
