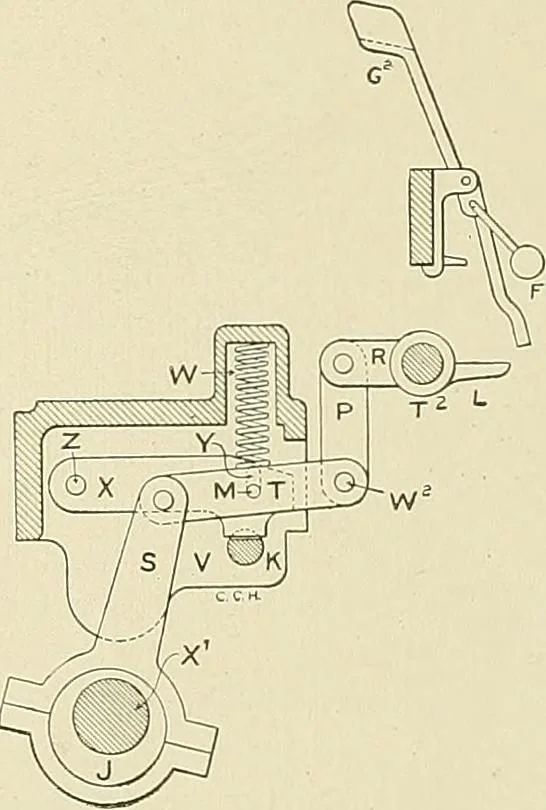

and eccentric is through the eccentricarm, S, rocker, T, Hnk, P, and, arm, R. The rocker is hung in the bottcvn. of a slot, Y, in the»stand, V, andthe pin, M, upon which the rockeris hung, projects into a hole In thelever, X, and in its normal position,is kept from rising by the spring,W^ The arm,… … Pig. 177. Back Stop Motion. in passing over them, holds thetails clear of the path of the fin-ger, L. When the machine is startedthe spring rod, K, which moveswith the shipper rod, slidesalong until a slot cut in its uppersurface is beneath one end ofthe lever, X. When this happens,X, which is…
