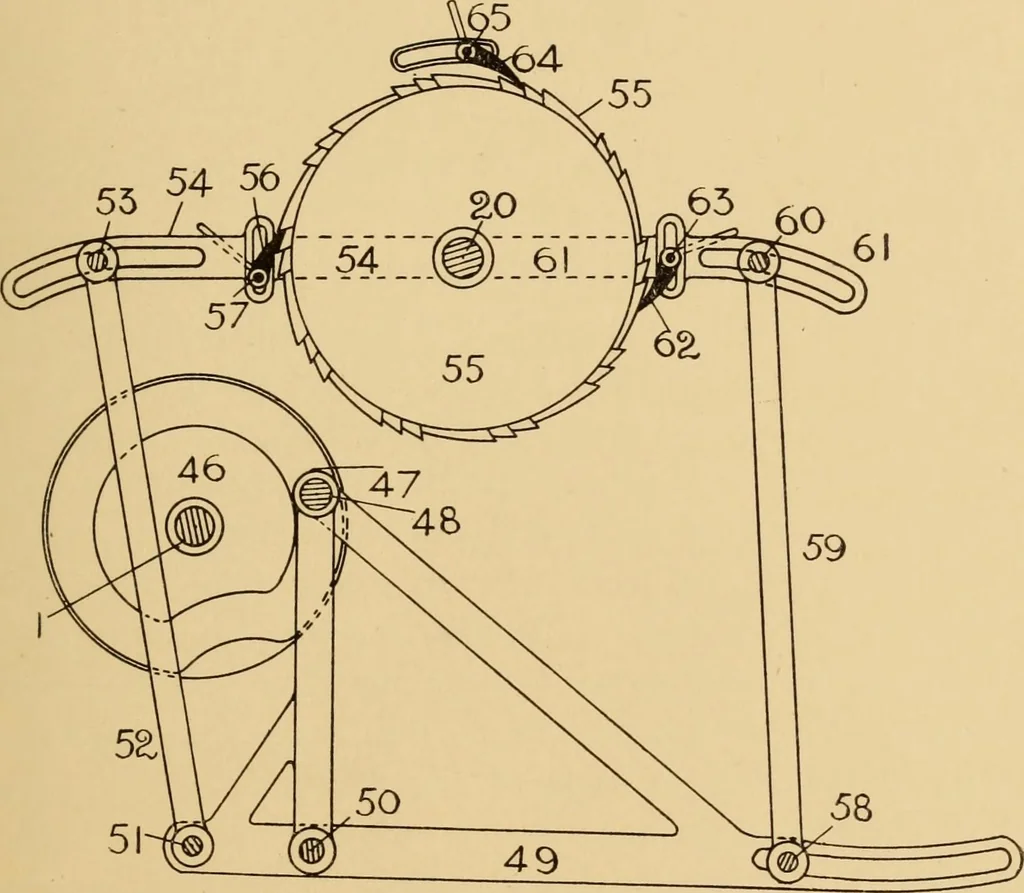

the constantrotation of the pulley driven shaft 1 and the positive tappet 46, theantifriction bowl 47 and stud 48 together with lever 49 are recipro-cated about the pivot stud 50 which motion in turn, is generatedthrough stud 51, rod 52 and stud 53 to lever 54 and pawl lever 56 CARD LACING AND… … Fig- 347 In a similar manner the details 58 to 62 inclusive, combine torock the lever 61 and pawl lever 62 so that with each downwardthrow, this pawl rotates wheel 55, a distance equal to if inches atits periphery representing 2J inches in the length of the stitch. The ratchet wheel 55 and…
