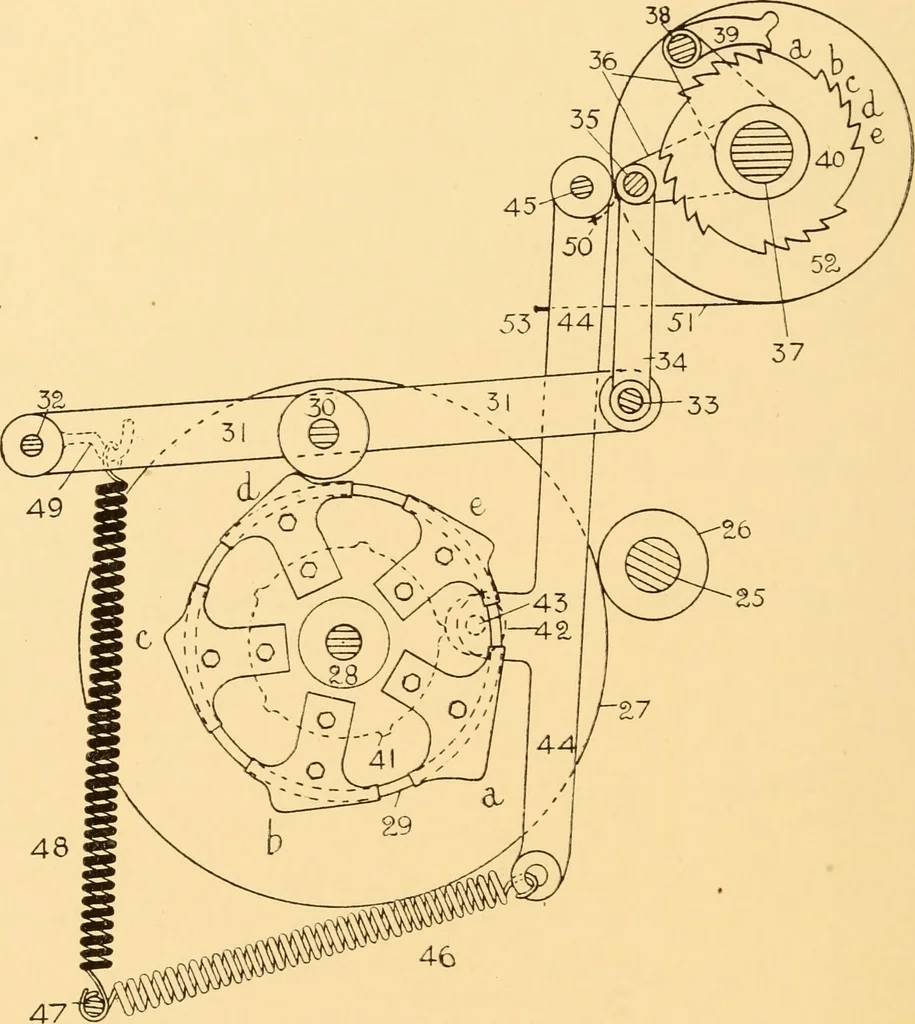

nded and pivoted to the fixed 342 JACQUARD MECHANISM AND HARNESS MOUNTING. stud 45; the free arm of lever 44 is combined by a spiral spring 46to a fixed stud 47. A second spiral spring 48 combines the lever 31through hook 49 also with stud 47. A fixed pin 50 in the sleeve oflever 44 retains one end… … Fig- 353 The next movement in order is the operation ofMechanism and the feedi needle> the essential details of whichAction of the .... . t-. o- ., xt ji are shown in a sectional elevation at rig. 354.Feeding Needle. ° J%J^ The feeding needle 4 is adjusted in a spindle 53,which passes freely…
