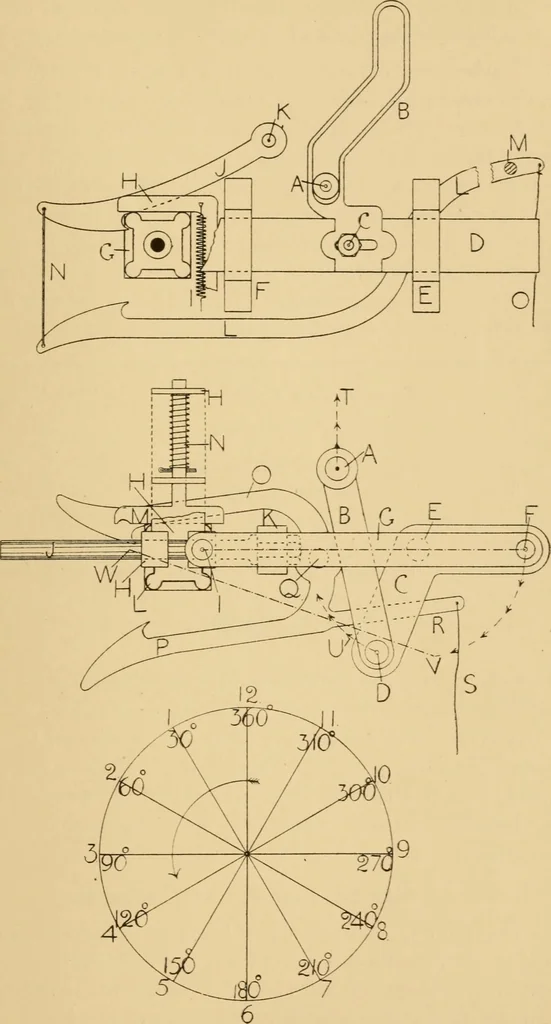

evolution, by overcomingthe resistance of the catches, hence the friction is very small whenthe parts are properly adjusted. Timing the various movements in Single Lift Jacquards. The following actual particulars wrere ascertained from a singlelift Jacquard, mounted on a 5/4 single shuttle loom… … 82 JACQUARD MECHANISM AND HARNESS MOUNTING. end of the top or crank shaft as in Fig. 68. The card cylinder wasdriven independently by an eccentric also secured to the crank shaft. Assume the circle described by the crank shaft to be dividedinto 12 equal parts, each part being equal to 300 (Fig.…
