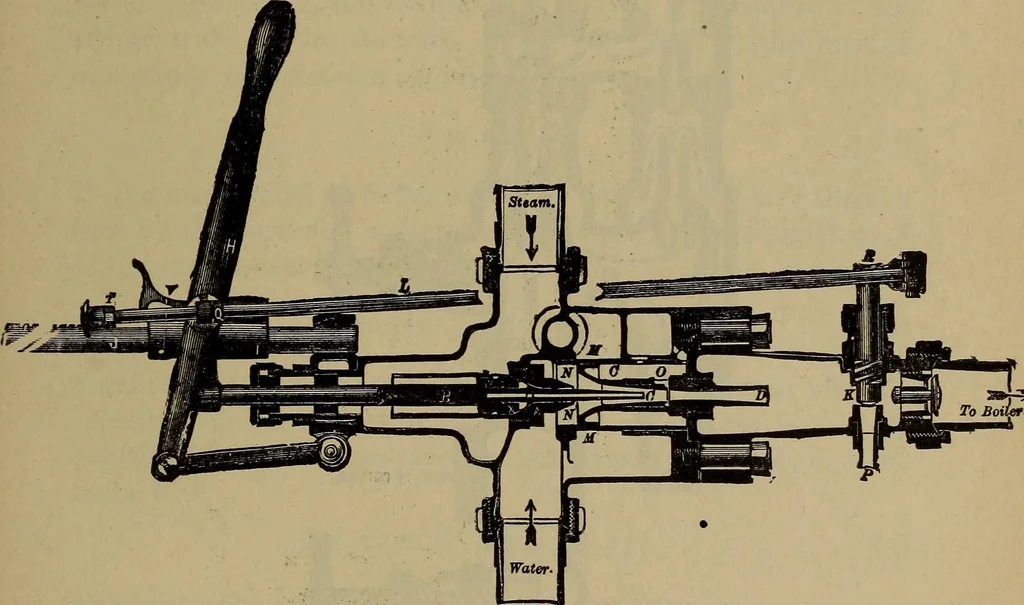

e nozzle at this point with the surroundingarea. This area is separated from the outside air by a check-valve, E, opening outward in the automatic injectors, and by aglobe valve termed the overflow-valve in the non-automaticinjector. The injector-nozzles are tubes with ends rounded toconform to the… … Fig. 242.—The Sellers Injector. chemselves automatically by varying the openings through thetubes to suit changes in steam-pressure. Fig. 242 is a section of the Sellers injector of 1876 ; in thisinjector Ike steam-noz2:le C can be inserted a greater or lessdistance, as required, into the…
