Journal - Franklin Institute of the State of Pennsylvania (1826)
Franklin Institute, Philadelphia, Franklin Institute (Philadelphia, Pa.) · [Philadelphia : Franklin Institute] · leaf 447

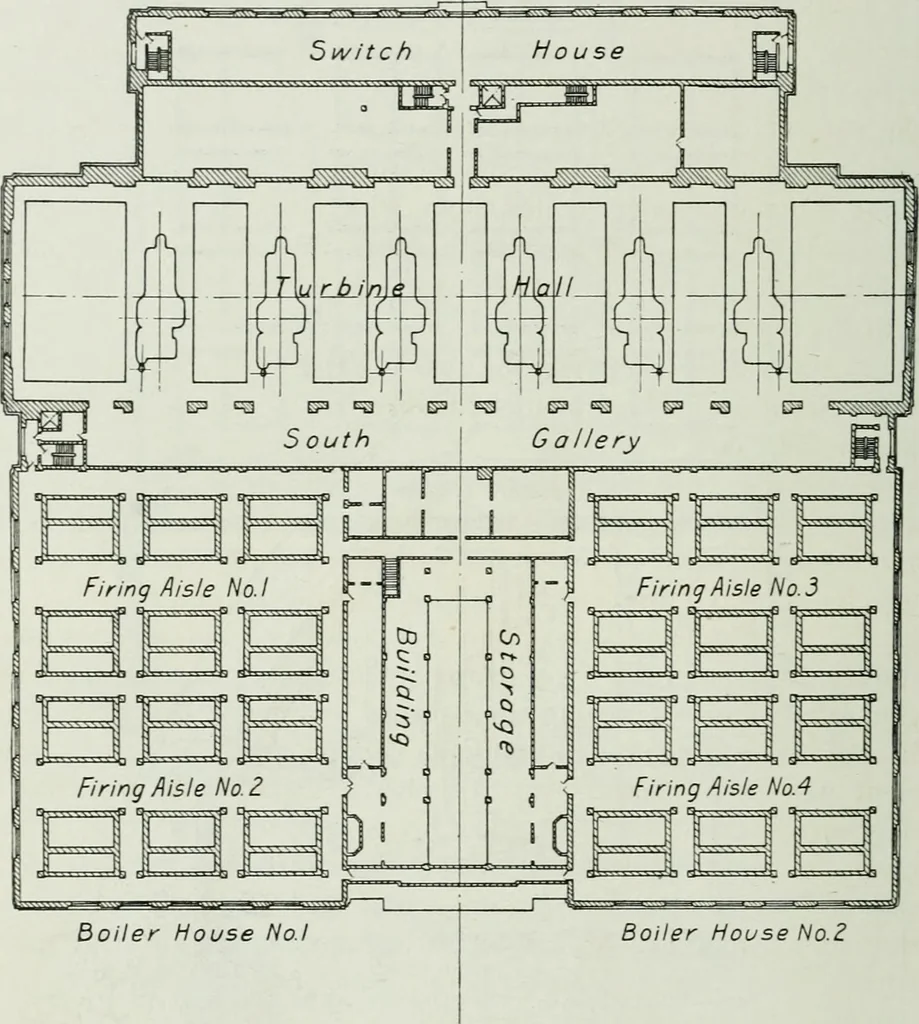

able arrangements. Turbine Room Arrangement. Turbine units are arranged with their shafts either lengthwise(Fig. 3) with or crosswise (Figs. 4 and 5) to the turbine room.Vol. 192, No. 1150—2i 438 Frank S. Clark, [J. F. I. When arranged lengthwise they are usually placed in a single row,although the… … Plan—Delaware Station. The Philadelphia Electric Company. Boiler Room Arrangement. Arrangement of the boiler room is usually along one of twolines, either with the firing aisles parallel with (Fig. 3) or at rightangles to the turbine room (Fig. 4). The right angle boiler room is ordinarily used in…
