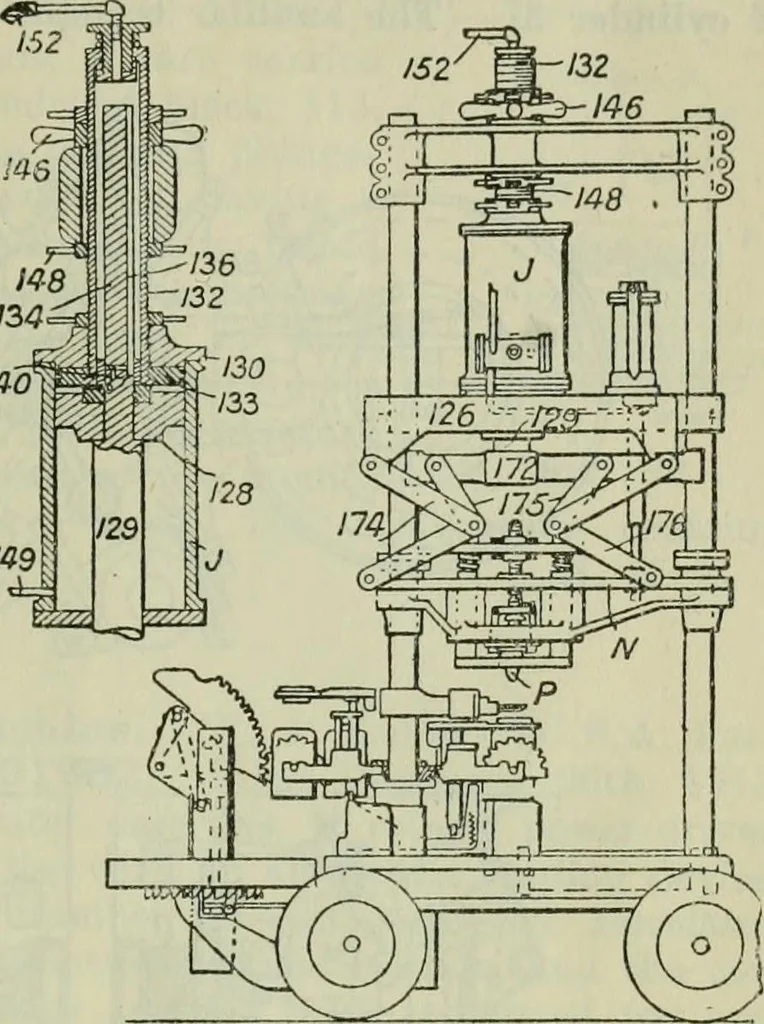

enter the apertures, 104,and is then rotated. The support, 99, is thus turned and screwsthe ring mould off the neck of the bottle. At the next stations,the mould is unlocked and opened, and the bottle is presented forremoval. Finally, the mould is locked again and the ring mouldscrewed down by… … moulding glass articles. The plunger, P (.Fig. 17), is mounted on a movable cross-head, N, connected with a fixedcross-head, 126, by toggles, 174, 176, which are operatedthrough links, 175, by across-head, 172, moved upand down by fluid pressureacting in the cylinder, /.The capacity of the…
