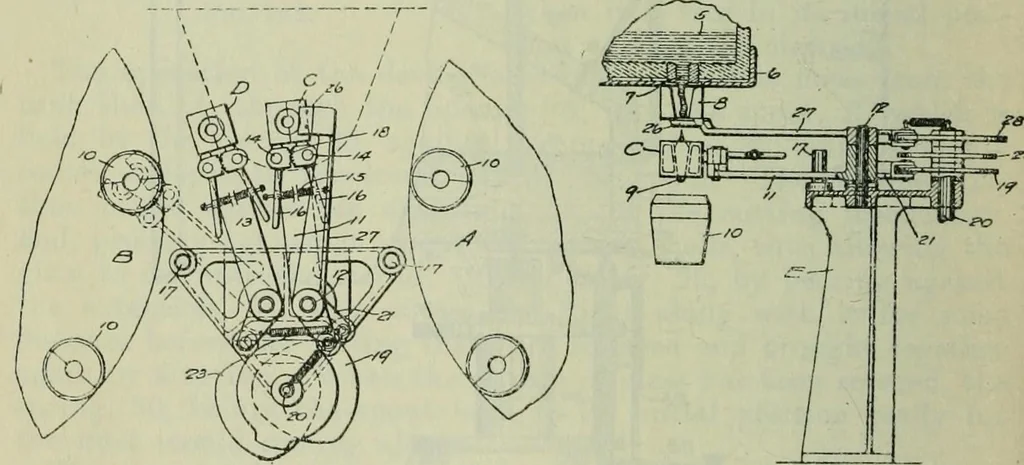

vention is to provide a mechanism comprisinga receptacle in which glass is accumulated and formed into gobs,and which can be moved from a filling to a discharging position,and thereby serves as a transfer device for transferring gobs tothe moulds. A continuous stream of glass flows through an… … Fto. 144. Fig. 145. the cup can swing to its discharge position above the mould, 10.The transfer cup, D (Fig. 144), is similarly mounted, and can swingover the mould, 10, on table B. Each of these transfer cups isbuilt up in sections made to swing on pivots, 14, permitting thesections to separate…
