Society of Glass Technology · [Sheffield] · leaf 717

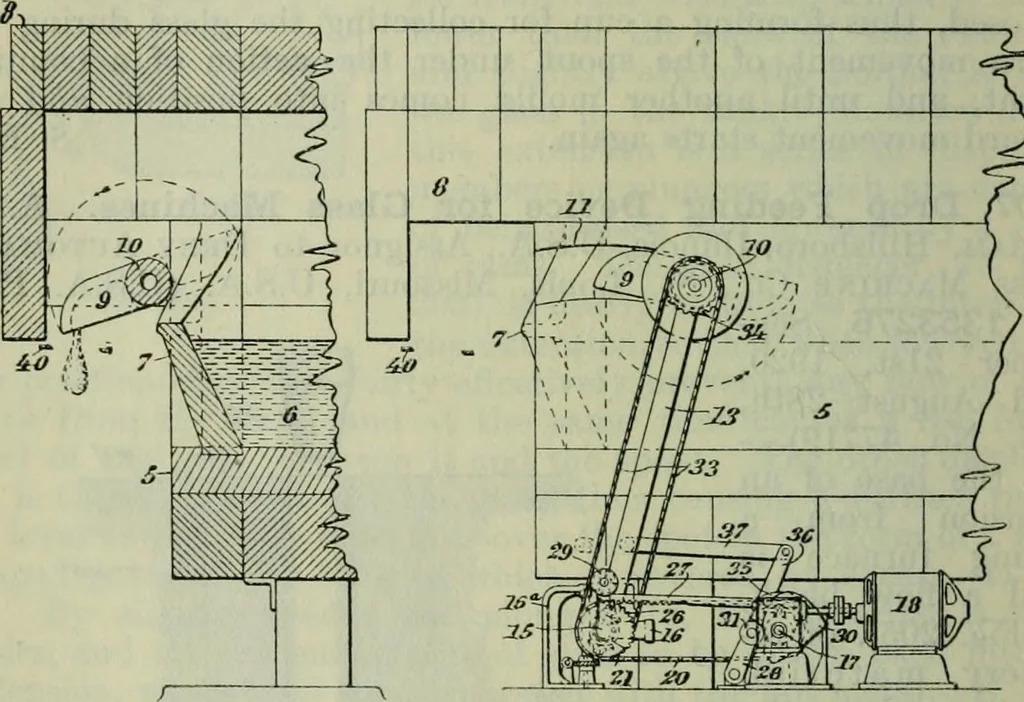

fall into a receptacle, such as amould. It is stated that the device is particularly designed for slowwork and intended to deliver the gobs at a speed not exceeding tena minute. As shown in Figs. 206 and 207, the supply of metal is, 6,contained in a forehearth, 5, which is covered by a hood, 8,… … Fio. 2on. Fig. 207. frame, 13. Mechanism is provided to oscillate the frame, 13, andto turn the shaft, 10, at appropriate intervals; means for adjustingthe height of the ladle and its movement also being provided. At the beginning of a cycle of operations, the ladle is in theposition shown in Fig.…
Glass
Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
