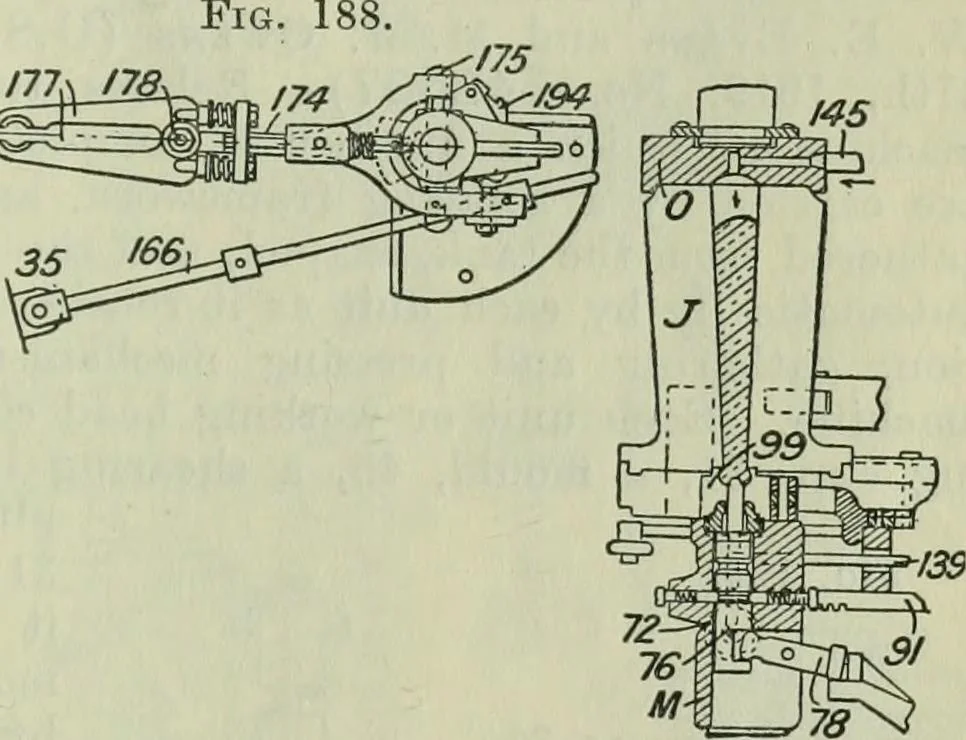

d closing means, and are opened by a cam-striker, 109, on a member, F, on the sleeve, E, to release the neckof the article after it has been positioned in the blowing mould.The blowing mechanism, M, is mounted on the support, H, andis reversed by a pinion and a rack, 91, operated through a… … Fig. 189. 226 JOURNAL OF THE SOCIETY OF GLASS TECHNOLOGY. a vertical axis, 178, on an arm, 174, movable about horizontaltrunnions, 175, on a rotary supporting member. The members177 are adapted to be depressed and closed to grip an article inthe opened mould, then elevated to raise the article…
