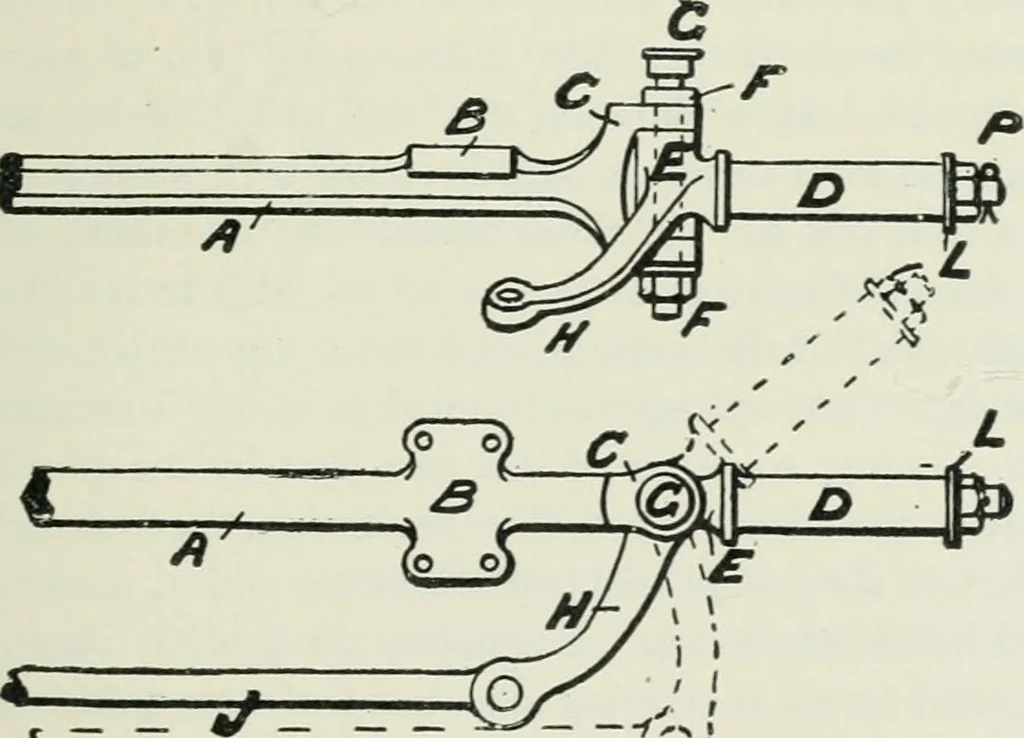

hind axle of a brougham.The ends only of these axles move for steering, namely thepart which is in the wheel and a short piece which is jointedto the fixed part of the axle. The most common form is assketched in figs. 3 and 4, which are a side elevation and planof one end of a steering axle. In… … Figs. 3 and 4.—Typical Ackerman Steering .\xle lubricator at g for supplying oil or grease to the pin. Onthe part E of the pivoted axle is an arm h, by which througha connecting-rod J, actuated by connections with the steeringhandle or wheel, the axle D is moved to any angle forsteering, as…
