Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 351

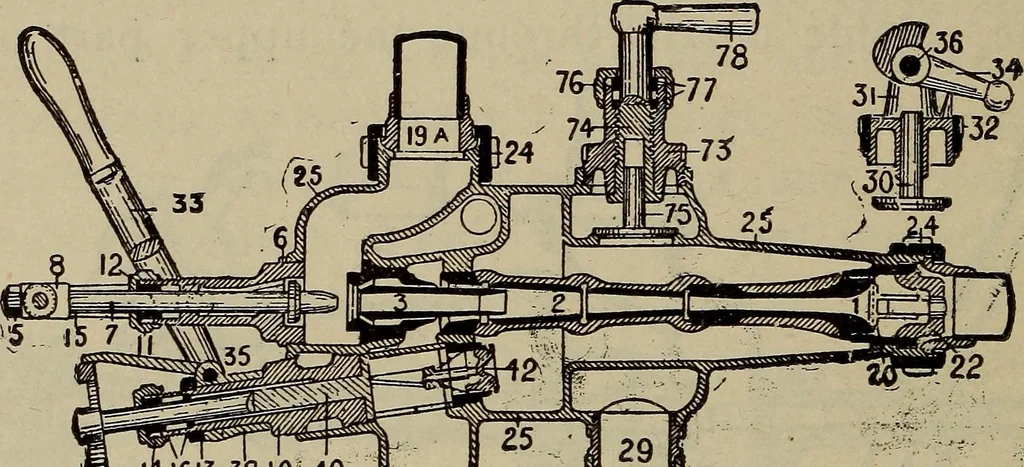

m pressure there is a tendency in allinjectors having an overflow to produce a vacuum in 346 LOCOMOTIVE ENGINEERING the chamber (25). In the Improved Self-ActingInjector this is utilized to draw an additional supplyof water into the combining tube by opening the inletvalve (42); the water is forced… … -:. • I Z 1291 ; ,jp ! w} 1 ! W^ |23A Figure 159 y Self-Acting Injector, Class M Improved SPECIAL FORM, INTERCHANGEABLE WITH MONITOR, OHIO, ETC. The cam lever (34) is turned toward the steam pipeto prevent the opening of the overflow valve when it isdesired to use the injector-as a heater or to…
Locomotives
