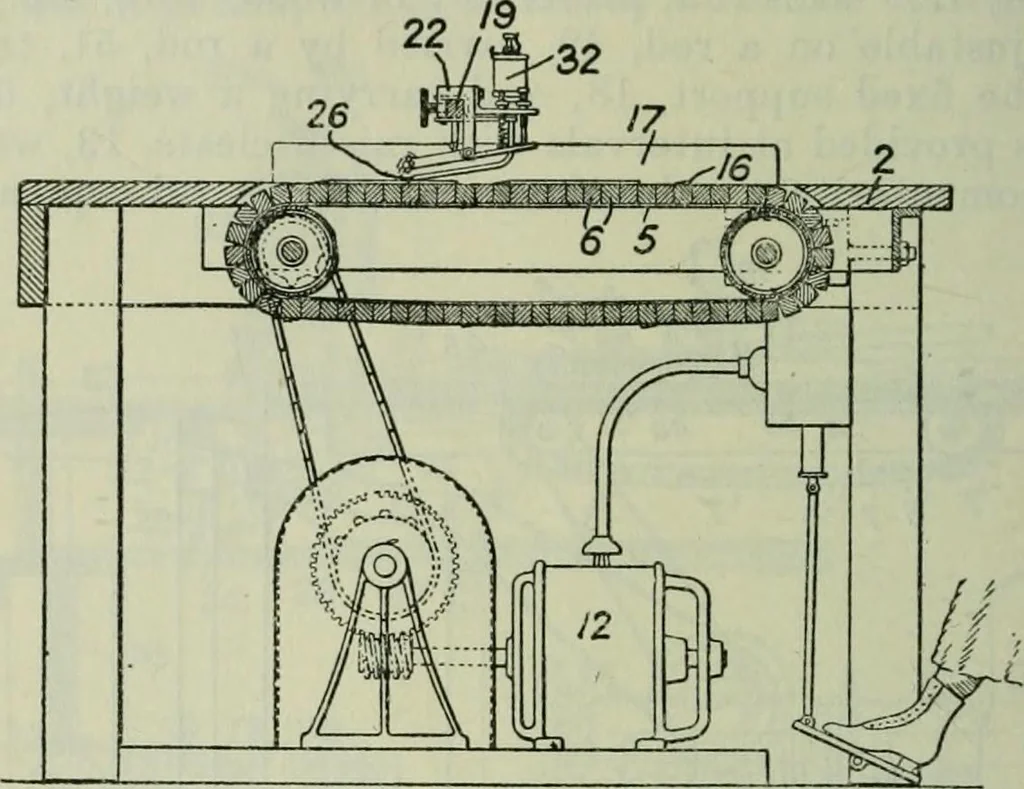

54 JOURNAL OF THE SOCIETY OF GLASS TECHNOLOGY. ported by angle irons, etc., secured to the table. Each cutter, 26,is mounted on a carrier, 22, transversely adjustable on a verticallyadjustable bar, 19, and bears with adjustable resiliency on thework. Pivotal adjustment is provided for the cutter in… … Fig. 227. cation the carrier is moved by hand, and may work over adjustabledrums provided with ball bearings. The machine may be pro-vided with an additional conveyor for the removal and inspectionof the cut sheets. H. G-. C. 360. Glass Gathering Machine and Process. J. O. Jensenand J. Henle,…
