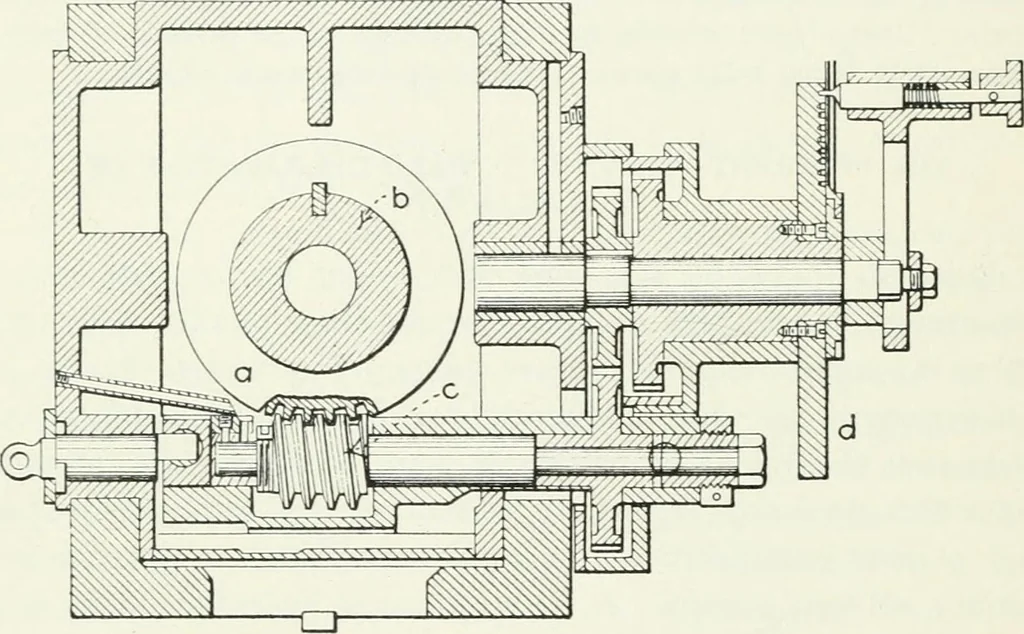

nda-mental importance as to require the giving of concrete examples.Assume the dividing head of a universal milling machine tobe set up for the purpose of cutting some gears. The dividinghead of the Cincinnati Milling ^Machine Company is shown inFig. 4, and like all others, it contains three parts… … Fig, -Section of milling machine dividing head. the divisions are determined. If the dividing head is by a firstclass maker, all of these parts are of a high degree of precisionbut the maker would be the last man to claim them to beperfect. The spacing of the teeth of the worm wheel is…
