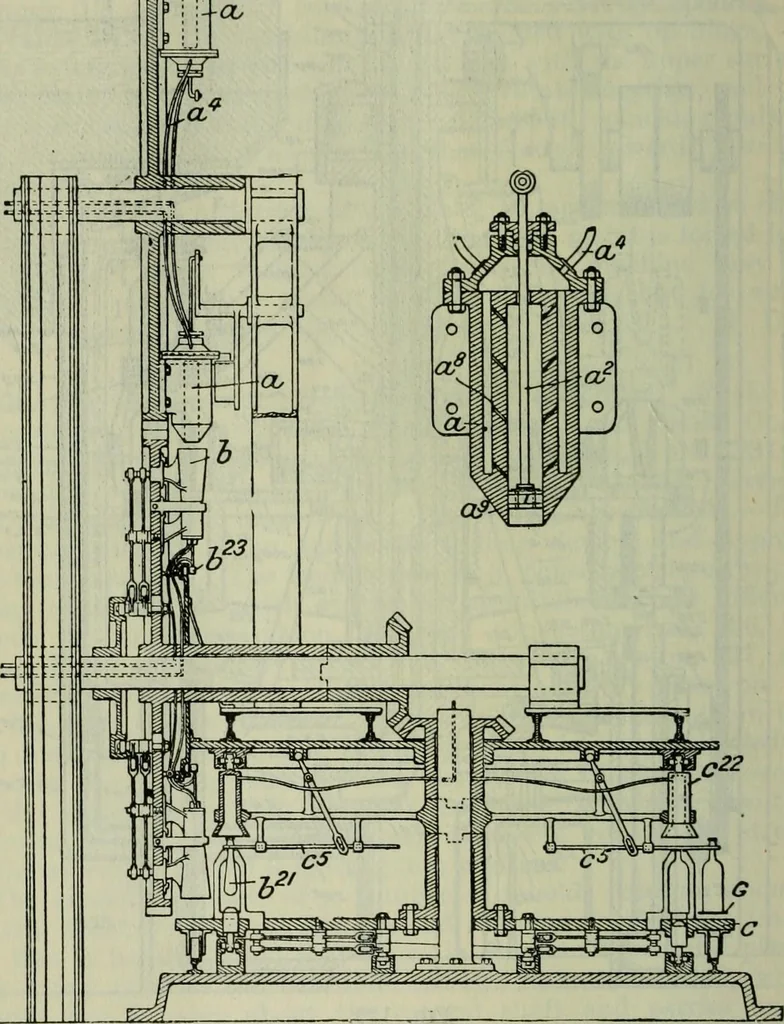

en descends, leaving the moulds as shown in position III. Thebottom plate, 214, then moves below the finishing mould and theparison is blown. G. D. 148 JOURNAL OF THE SOCIETY OF GLASS TECHNOLOGY. 261. Automatic Bottle-blowing Machine. A. Ferguson,Scorrier, Cornwall (Brit. Pat., No. 154252, May… … Fig. 123. gathering cylinders, a, are mounted to rotate in a vertical planeso as to dip successively into molten metal contained in the tankF. As each cylinder, a, dips its piston, a2 (Fig. 123) is raised bya lever, a10 (Fig. 124), and draws up the metal into the cylinder,a. To assist in filling…
Glass
