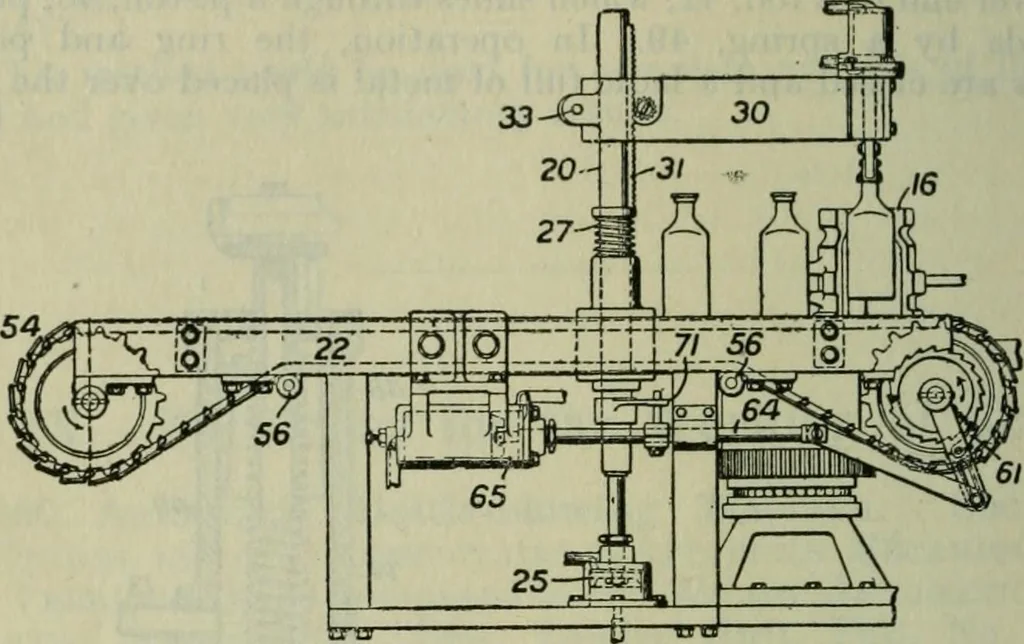

o stop the suction, the parison mould is opened, and the finishingmould, 19, and the bottom mould, 74, are moved to enclose theparison. Further operation of the pedals and the controller admitscompressed air to the ring mould to blow the parison to the finalshape. H. G. C. 132 JOURNAL OF THE… … Fig. 84. matically-operated transfer mechanism for glass-blowing machinesis mounted upon a cross-arm carried by a vertical shaft which islifted and rotated pneumatically to raise the article from the mouldand deposit it on a conveyer. The take-out mechanism comprises
