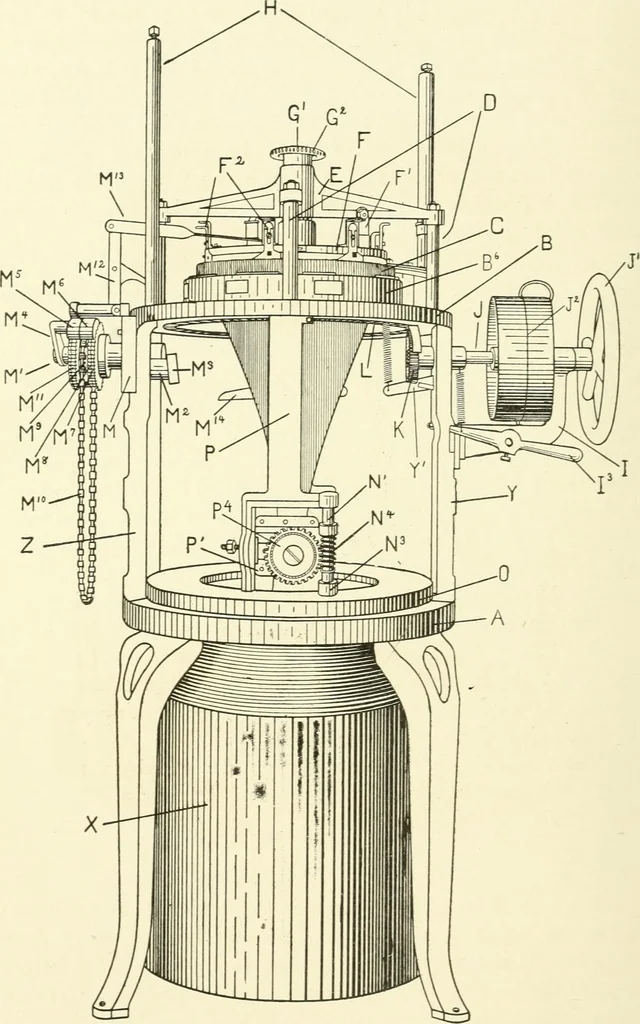

minute, in winding soft spun yarn. CIRCULAR RIB KNITTING MACHINES.REVOLVING NEEDLE CYLINDER. The type of this style of machine (Stafford & Holt) illustratedin Fig. 39, has the outlines usually followed by builders of thesemachines. It rests on four legs, secured to the bedplate A, whichsupports… … Fig. 39. Latch Needle Circular Knitting Machine.Revolving Needle Cylinder. 110 KNITTING 97 is arranged. On this cam ring are secured four studs D, to supportthe dial arch E for holding up the cap, on which is arranged the camsystem for the radial needles, and the dial. The bobbins are heldon a…
