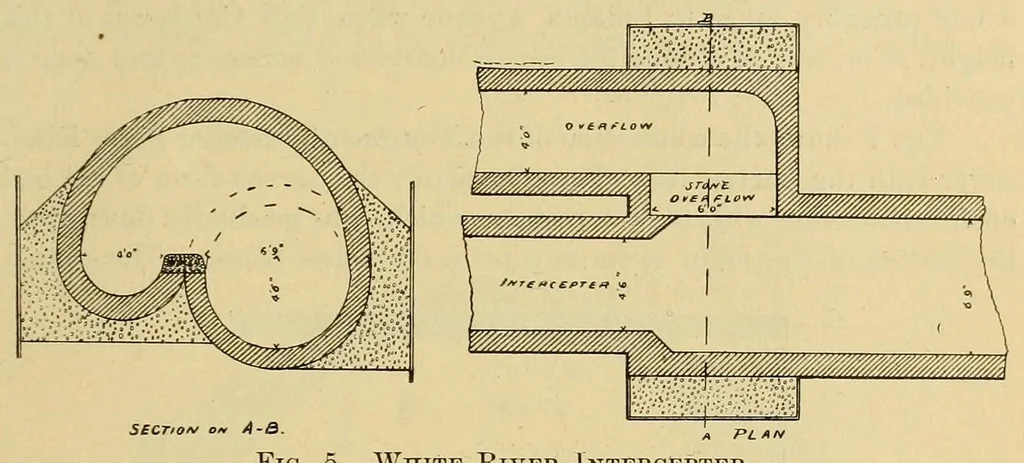

THE SEWERAGE SYSTEM OF INDIANAPOLIS. 101 water as possible. The form of the overflow is shown in the " Section on A-B" in Fig 5. Fig. 5 shows the intercepter overflow. The inter- cepter is here 6 feet in diameter. An opening is made in the side, 6 … Fig. 5. — White River Intercepter. Overflow at Indiana Avenue. Scale, yV inch = 1 foot. feet long and 4 feet 6 inches above the bottom, over which the storm water runs into the connection with the main overflow sewer 4-feet in diameter. In this 4-foot section is put a manhole and a back water gate…
