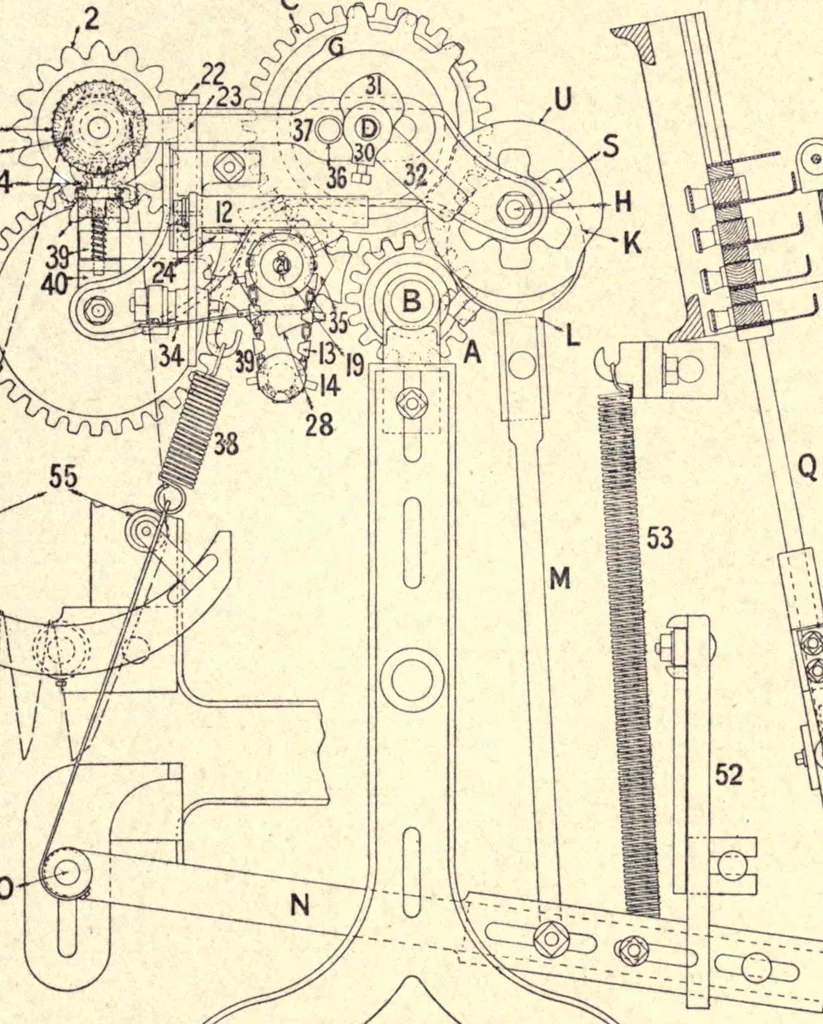

JUTE AND LINEN WEA VING 440 Compounded with the small eccentric is a wheel S of 6 teeth, shown in Figs. 225 and 227 ; similarly the large eccentric is compounded with wheel R. T and U are the locking plates for R and S respectively, and these locking … plates prevent all motion on the part of the eccentrics except when the teeth of R and S come into contact with the teeth on discs F and G. V is the pattern card barrel or cylinder, 8-sided as shown, and capable of being driven clockwise or counter-clockwise as desired. It receives its two motions…
