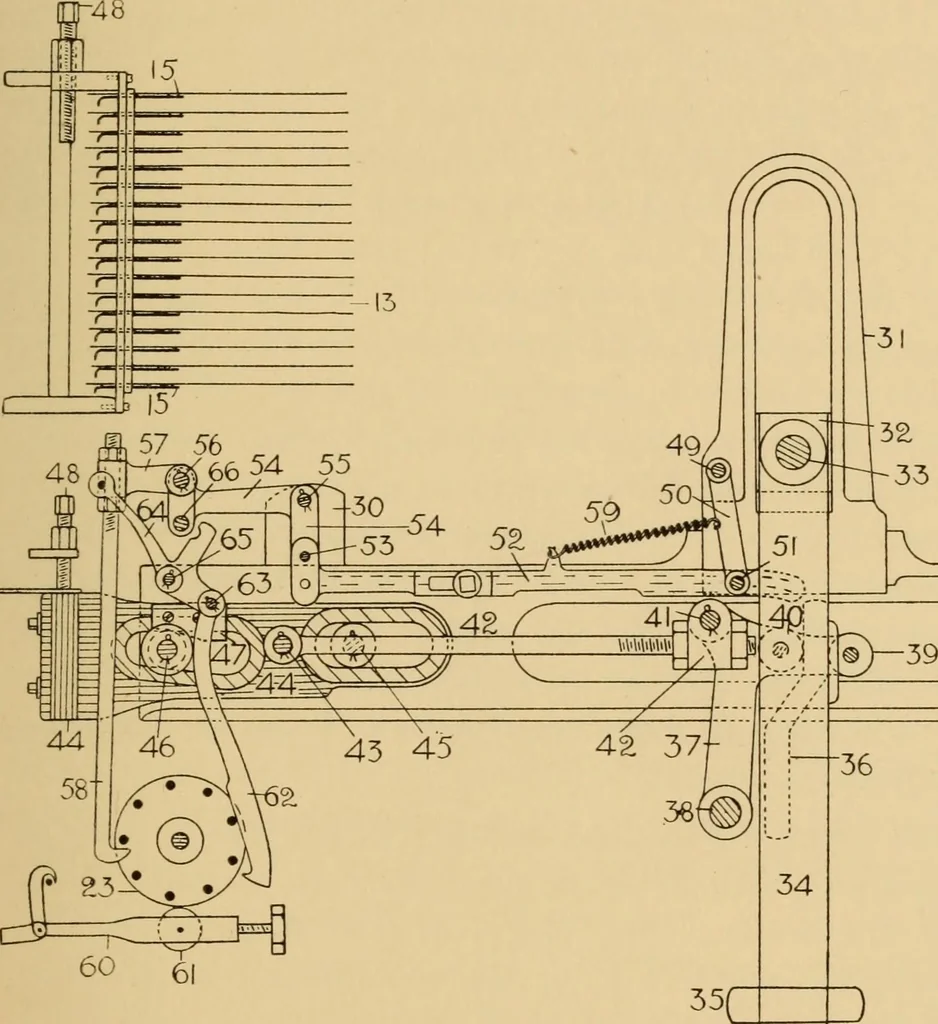

the free lateral traverse of the needles 13 and 7. Immedi-ately the pressure is released from the rods 27 and needles 7 by theplate 15, the spiral spring 28 exercises its potential energy to movethe rods 27 and clamp board .26 into their original position. The INDEX AND SPECIAL TYPES OF JACQUARD… … V 30, 30 Fig. 262 Details of Mechanism and Driving the Needle Plates. Fig. 260 is a front elevation of the card roller and needledriving plates. Fig. 261 is a detached and side view of part of the needledriving plates, together with their distribution and compoundinginto one whole series. 252…
