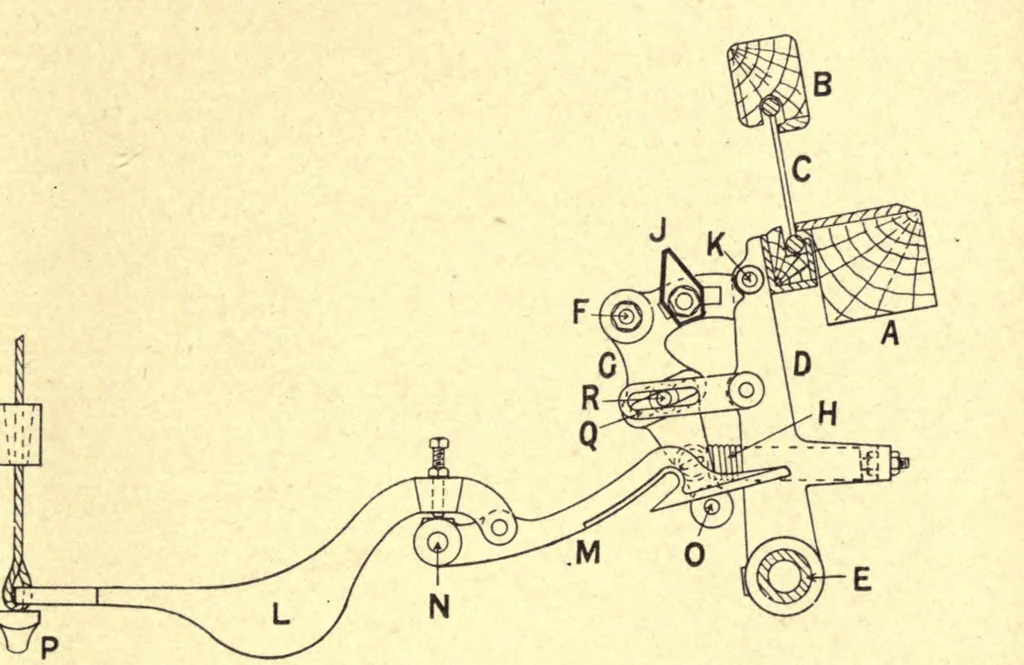

JUTE AND LINEN WEA VING CHAP. 534 lever L M is so weighted that it tends to rest on its support- ing bracket P, and so keep the hooked arm M raised clear of the stud pin 0. But when an open reed or "loose pick " is wanted, the arm L is raised by connections from the dobby, see Fig. 273, and the… … FIG. 273. recede under the pull of spring H, and as far as the stop- piece J will permit. Further forward movement of the swords and the arm D will simply extend spring H. As the lay and swords again recede, the spring H closes the reed through the action of lever G, and the arm of the sword comes…
