Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)
American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 149

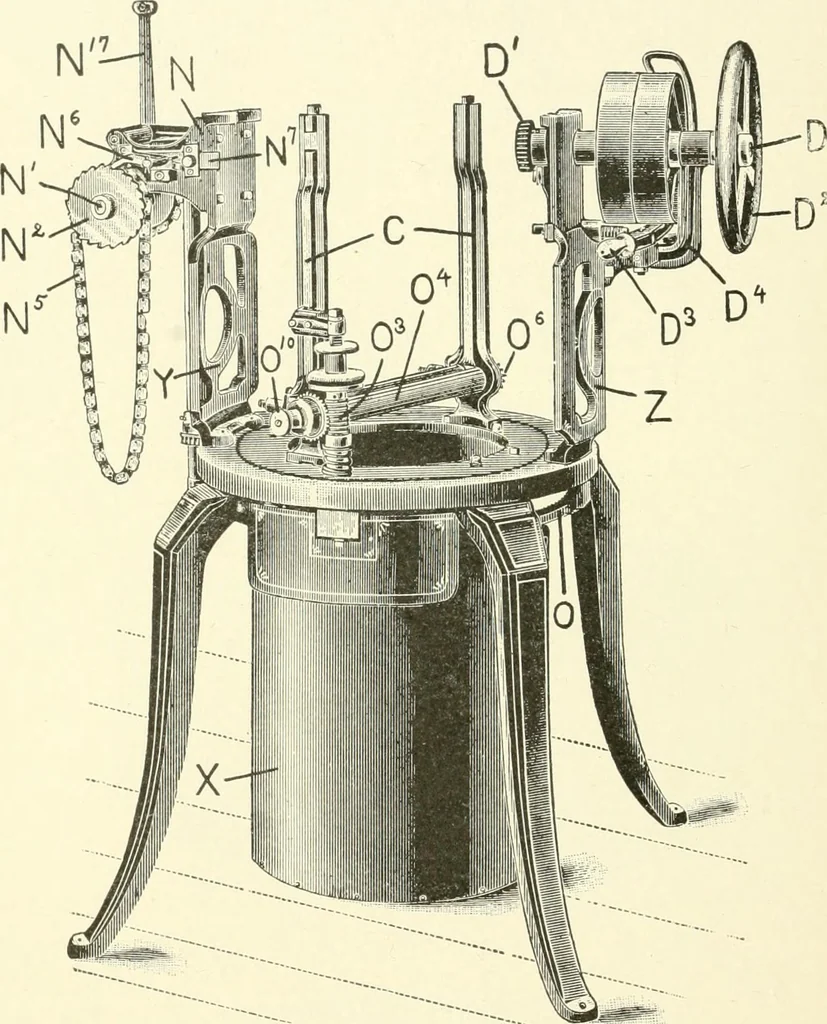

Fig. 60. Dial ami Cylinder. 133 120 KNITTING the top ring can be divided as indicated by the three l)roken lines inFig. 45, and each section will be held by two screws, the bottom ofwhich also show in Fig. 45. … Fig. 61. Frame and Take-up. Loading up the Needles. If anything goes wrong when themachine is running, the yarn begins to load up near the top of theneedles. If a hook or a latch bends, or a butt cuts off, or lumps orother imperfections occur on the needles, it can, as a rule, be detectedalmost…
Knitting machines
