Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)
American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 286

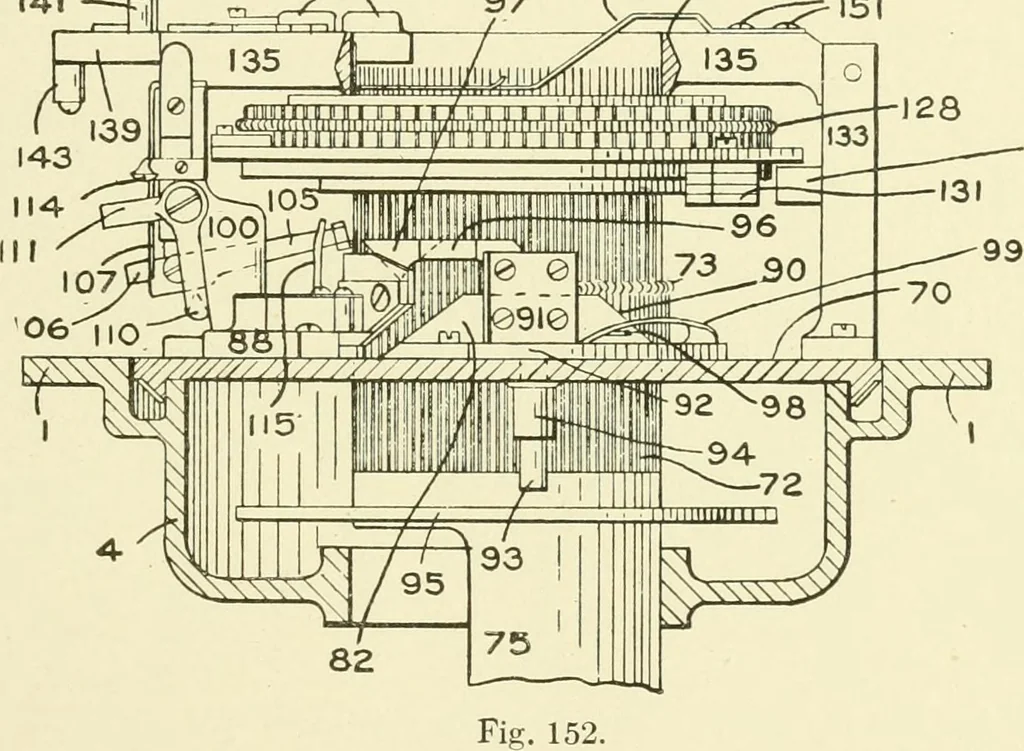

bottom of the cup-shaped bearing 4. The ring 7G has aprojecting hig 78 (see Figs. 149 and 150), to which block 79 is securedby means of a bolt. A stop SI extends vertically through the inner endof the block and projects above it. The web-guide 75 rests on thestop, except when raised for lengthening… … 132 The Knitting Cams. A cam-web 82 which forms about three-fourths of a circle (see Figs. 152, 153, 154, 157, and 158), is formed ateach end with an incline or cam 83, and is secured to the ring 70. Thecams 83 act on the heels of the needles to raise them during the knittingoperation, the heels…
Knitting machines
